4.3. FLS Module

4.3.1. Acronyms and Definitions

Abbreviation/Term	Explanation
AUTOSAR	Automotive Open System Architecture
RTE	Runtime Environment
BSW	Basic Software
MCAL	Micro Controller Abstraction Layer
MCU	Micro Controller Unit
API	Application Programming Interface
DET	Default Error Tracer
HW	Hardware
SW	Software
FLS	Flash Driver
MCU	Micro Controller Unit
OS	Operating System

4.3.2. Introduction

This document describes MCAL FLS Driver functionality and configuration details as per AUTOSAR version 4.3.1 .

Supported AUTOSAR Release	4.3.1
Supported Configuration Variants	Pre-Compile, Post-build
Vendor ID	FLS_VENDOR_ID (44)
Module ID	FLS_MODULE_ID (92)

The Flash Driver provides services for reading, writing, erasing memory and and a configuration interface for setting / resetting the write / erase protection of internal data flash.

• Perform storage mode applications:

  • Read from flash.

  • Write to flash.

  • Erase flash.

  • Compare and Blank Check flash memory location.

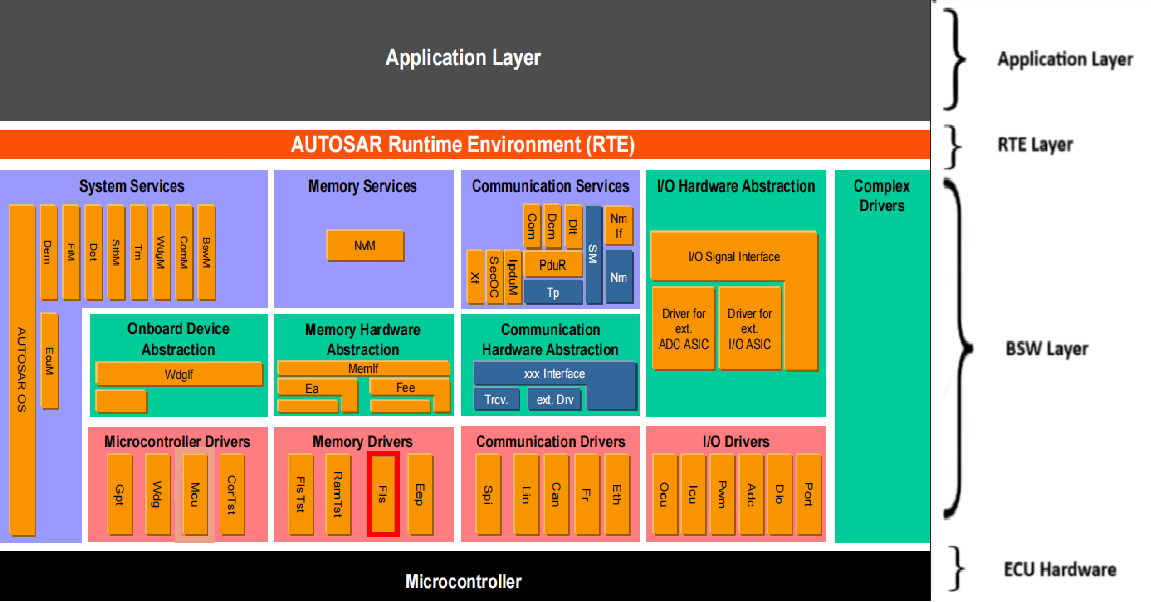

Fig. 4.8 FLS in AUTOSAR architecture

4.3.3. Functional Overview

The Flash Driver provides services for reading, writing, erasing the internal data flash memory on F29x device.

The Flash driver updates the wait states based on the MCU system cycle, and enable the sector protection. Before each flash write and erase, the driver grabs the flash semaphore, and release it after the job is done or failed.

The Fls_Erase, FLs_Write, Fls_Read, FLs_Compare, and Fls_BlankCheck are performed asynchronously within the FLS module’s main function. All others (Fls_Cancel, Fls_GetStatus, Fls_GetJobResult) are the synchronous functions of this module.

4.3.4. Hardware Features

4.3.4.1. Hardware Features Supported

The features of data flash include:

1. One dedicated data Flash bank housed in Flash Controller 1 (FLC1), optimized for data bus read accesses

2. The Flash Controller can program or erase a Data Flash bank while simultaneously reading from the other Program Flash banks

3. Tight integration with the Safety and Security Unit (SSU) for security management and access control for Flash program, erase and read operations

4. 128-bit-wide Flash programming, with configurable programming options

5. Multiple sectors, with the ability to erase individual/specific sectors while leaving others programmed

6. Code prefetch, block cache and data cache mechanisms for enhanced read performance for program code and data

7. Configurable wait states to achieve the best performance at a given clock frequency

8. Safety Features

   • ECC error detection in address bits, with reporting to the Error Signaling Module (ESM)

   • Supports ECC bits for single error correction and double error detection (SECDED)

9. Integrated Flash program and erase state machines in the Flash Controller modules:

   • Simple Flash API algorithms

   • Fast erase and program times (refer to the device data manual for details)

10. Automatic arbitration of data accesses between multiple initiators (CPUs, HSM, RTDMA and debugger accesses)

4.3.4.1.1. Hardware Features Not Supported

None

4.3.4.2. Non compliance

Below AUTOSAR requirements are not supported for Mcu Driver :
SWS_Fls_00155 : The function Fls_SetMode shall set the FLS module’s operation mode to the given “Mode” parameter.

Rejection Reason : No SPI interface/ No external flash

SWS_Fls_00156 : If development error detection for the module Fls is enabled: the function Fls_SetMode shall check that the FLS module is currently not busy. If this check fails, the function Fls_SetMode shall reject the set mode request and raise the development error code FLS_E_BUSY.

Rejection Reason : No SPI interface/ No external flash

SWS_Fls_00187 : The function Fls_SetMode shall be pre-compile time configurable On/Off by the configuration parameter FlsSetModeApi.

Rejection Reason : No SPI interface/ No external flash

4.3.5. Source files

Static source C Files are defined below

📦f29h85x_mcal
┣ 📂build
┣ 📂docs
┣ 📂drivers
┃ ┣ 📂BSW_Stubs
┃ ┣ 📂Can
┃ ┣ 📂Cdd_Adc
┃ ┣ 📂Cdd_Sent
┃ ┣ 📂Cdd_Xbar
┃ ┣ 📂Dio
┃ ┣ 📂Fls
┃ ┃ ┣ 📂include
┃ ┃ ┃ ┣ 📜Fls.h : Contains the APIs of the FLS driver to be used by upper layers.
┃ ┃ ┃ ┣ 📜Fls_Ctrl.h : Contains internal function declarations.
┃ ┃ ┃ ┗ 📜Fls_Priv.h : Contains the private function declarations.
┃ ┃ ┣ 📂src
┃ ┃ ┃ ┣ 📜Fls.c : Contains the implementation of the API’s for Fls driver.
┃ ┃ ┃ ┣ 📜Fls_Priv.c : Contains private function definitions which will interact with Flash APIs.
┃ ┃ ┃ ┗ 📜Fls_Ac.c : Contains internal functions definitions which will directly interact with hardware registers.
┃ ┃ ┗ 📜CMakeLists.txt
┃ ┣ 📂Gpt
┃ ┣ 📂hw_include
┃ ┣ 📂Lin
┃ ┣ 📂Mcal_Lib
┃ ┣ 📂Mcu
┃ ┣ 📂Port
┃ ┣ 📂Spi
┃ ┣ 📂Wdg
┣ 📂examples
┣ 📂plugins
┣ 📂CMakeLists.txt
┗ 📜CMakePresets.json

Plugin files are defined below in the table.

Plugin Files	Description
Fls_Cfg.h	Contains the Precompile switches
Fls_PBcfg.c	Contains all Post-Build Configured parameters
Fls_Cfg.c	Contains all Pre-Compile Configured parameters

Fig. 4.9 FLS header file include structure

4.3.6. Module requirements

4.3.6.1. Memory Mapping

Memory Mapping Sections	Compiler Abstraction Definitions
	FLS_CODE	FLS_VAR_NO_INIT	FLS_CFG
FLS_START_SEC_VAR_NO_INIT_UNSPECIFIED (.data)		x
FLS_STOP_SEC_VAR_NO_INIT_UNSPECIFIED		x
FLS_START_SEC_CODE (.text)	x
FLS_STOP_SEC_CODE	x
FLS_START_SEC_CONFIG_DATA (.data)			x
FLS_STOP_SEC_CONFIG_DATA			x

4.3.6.2. Scheduling

Schedule Function API	Description
Fls_MainFunction	This function shall perform the processing of the flash read, write, erase, blank check and compare jobs.

4.3.6.3. Error handling

4.3.6.3.1. Development Error Reporting

The Fls Driver will report development errors on enabling FLS_DEV_ERROR_DETECT == STD_ON in Fls_Cfg.h.

The errors reported to DET module are described in the following table:

Type of Error	Related Error code	Value (Hex)
API service called with wrong parameter	FLS_E_PARAM_CONFIG	0x01
API service called with wrong parameter	FLS_E_PARAM_ADDRESS	0x02
API service called with wrong parameter	FLS_E_PARAM_LENGTH	0x03
API service called with wrong parameter	FLS_E_PARAM_DATA	0x04
API service used without module initialization	FLS_E_UNINIT	0x05
API called when module is busy	FLS_E_BUSY	0x06
API called with a Null Pointer	FLS_E_PARAM_POINTER	0x0A
API called with a mismatch in erase type and length provided	FLS_E_PARAM_ALIGNMENT	0x0C

The run time errors reported to DET module are described in the following table:

Type of Error	Related Error code	Value (Hex)
Erase verification (blank check) failed	FLS_E_VERIFY_ERASE_FAILED	0x07
Write verification (compare) failed	FLS_E_VERIFY_WRITE_FAILED	0x08
Timeout supervision (flash erase/write timeout check with published max times)	FLS_E_TIMEOUT	0x09

AUTOSAR requires that API functions check the validity of their parameters. The check in the below table shows the various Development Error Reporting: Assignment of checks to services are internal parameter checks of the API functions. These checks are for development error reporting and can be enabled or disabled. The following table shows which parameter checks are performed on which services:

4.3.6.4. Error Code

Check Services	FLS_E_PARAM_CONFIG	FLS_E_PARAM_ADDRESS	FLS_E_PARAM_LENGTH	FLS_E_PARAM_DATA	FLS_E_UNINIT	FLS_E_BUSY	FLS_E_PARAM_POINTER
Fls_Init	x					x
Fls_Erase		x	x		x	x
Fls_Read		x	x	x	x	x
Fls_Write		x	x	x	x	x
Fls_Compare		x	x	x	x	x
Fls_BlankCheck		x	x		x	x
Fls_GetJobResult					x
Fls_GetVersionInfo							x
Fls_MainFunction					x
Fls_Cancel					x

4.3.7. Used resources

4.3.7.1. Interrupt Handling

There is no hardware interrupt in Fls.

4.3.7.2. Instance support

CPU instances	supported
CPU 1	YES
CPU 2	NO
CPU 3	NO

4.3.7.3. Hardware-Software Mapping

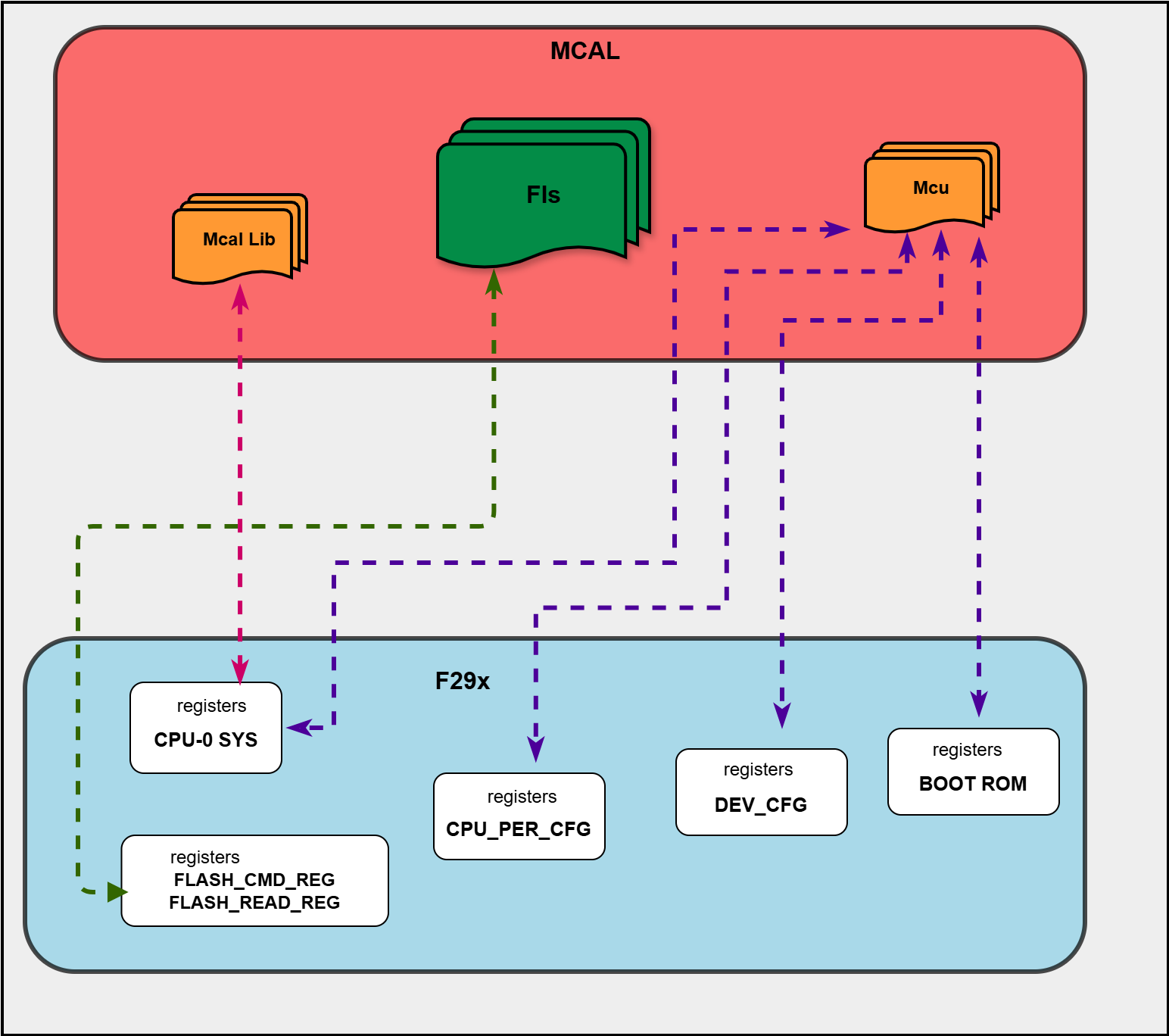

Below image shows Fls driver Hardware-Software mapping. For more information related to HW/SW mapping, refer the F29 Reference Manual.

Fig. 4.10 Fls HW/SW Mapping

4.3.8. Integration description

4.3.8.1. Dependent modules

4.3.8.1.1. DEM

FLS Production errors are reported to DEM ( Diagnostic Event Manager ) Module. The Fls module reports production errors to the Diagnostic Event Manager.

4.3.8.1.2. MCU

The hardware of the internal Fls hardware unit depends on the system clock, pre-scaler(s) and PLL. The FLS driver module will not take care of setting the registers that configure the clock, pre-scaler(s) and PLL (e.g. switching on/off the PLL) in its init functions. The MCU module must do this.

4.3.8.1.3. OS

The FLS driver uses timer and therefore there is a dependency on the OS, which configures the timer.

4.3.8.1.4. SchM

If multiple AUTOSAR runnables have access to the same Data Store Memory block, the exported AUTOSAR specification enforces data consistency by using an AUTOSAR exclusive area. With this specification, the runnables have mutually exclusive access to the per-instance memory global data, which prevents data corruption. Beside the OS, the BSW Scheduler provides functions that FLS module calls at begin and end of critical sections. This implementation requires 1 level of exclusive access to guard critical sections.

The data consistency mechanism that has to be applied to an ExclusiveArea might be domain, ECU or even project specific. The decision which mechanism has to be applied by RTE / Basic Software Scheduler is taken during ECU integration by setting the Exclusive Area configuration parameter RteExclusiveAreaImplMechanism. This parameter is an input for RTE generator. For LIN Module, data consistency and exclusive access to critical sections are required for the following sections as shown in the table below:

Exclusive Area Functions used	FLS Function calling Exclusive Area	Need for Exclusive Area	Recommended Exclusive Area Mapping
FLS_EXCLUSIVE_AREA_0	Fls_Erase Fls_Write	To protect against multiple access for shared resources	OS_RESOURCE : If the FLS APIs are only called from pre-emptible task context, its recommended to use this mechanism as it takes care of resource access protection and task priority management. None: If FLS APIs are only called from non pre-emptible task context or during init, its recommended to use this mechanism as multiple access protection to shared resource is not needed.

4.3.8.1.5. MemIf

This implementation depends on MemIf module and uses its imported types such as MemIf_JobResultType, MemIf_ModeType and MemIf_StatusType.

4.3.8.1.6. Fee

This implementation depends on Fee module for callback notification to notify the module environment about job end and job error.

4.3.8.1.7. DET

The module FLS depends on the DET (by default) in order to report development errors. Detection and reporting of development errors can be enabled or disabled by the switch FLS_DEV_ERROR_DETECT = STD_ON in the Fls_Cfg.h

In development mode, the Fls module reports development error through the Det_ReportError function of module DET.

The following table represents the service IDs:

Service ID	Code	Service
FLS_SID_INIT	0x00	Fls_Init
FLS_SID_ERASE	0x01	Fls_Erase
FLS_SID_WRITE	0x02	FLS_Write()
FLS_SID_CANCEL	0x03	FLS_Cancel()
FLS_SID_GET_STATUS	0x04	FLS_GetStatus()
FLS_SID_GET_JOB_RESULT	0x05	Fls_GetJobResult()
FLS_SID_READ	0x07	FLS_Read()
FLS_SID_COMPARE	0x08	FLS_Compare()
FLS_SID_GET_VERSION_INFO	0x10	Fls_GetVersionInfo()
FLS_SID_BLANK_CHECK	0x0A	FLS_BlankCheck()
FLS_SID_MAIN_FUNCTION	0x06	FLS_MainFunction()

4.3.9. Configuration

The Fls can be configured as Post-Build or Pre-Compile variant, using EB tresos tool.

Variants	Configured Files
PostBuild	Fls_PBcfg.c , Fls_Cfg.h
Pre-Compile	Fls_Cfg.c , Fls_Cfg.h

The generated configuration files should not be modified manually. The config tool Elektrobit Tresos should be used to modify the configuration files.

4.3.9.1. Migration Guide to v02.00.00 from v01.01.00 or any older versions

In version v02.00.00, the name of the generated configuration structure used to initialize the module has been changed to comply with AUTOSAR requirement TPS_ECUC_08011. In case of Post build variant, upper modules that call the Fls_Init function will need to use the new configuration structure name. For example:

/* Old code (v01.01.00 or any older versions) */
Fls_Init(&Fls_FlsConfigSet);

/* New code (v02.00.00) */
Fls_Init(&Fls_Config);

This change ensures compliance with AUTOSAR naming conventions.

To successfully migrate to v02.00.00, update any upper module that references the configuration structures to use the new structure name.

4.3.9.2. FlsConfigSet

Container for runtime configuration parameters of the flash driver.

4.3.9.2.1. FlsAcErase

Item
Name	FlsAcErase
Description	Address offset in RAM to which the erase flash access code shall be loaded.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	100
Max-value	4294967295
Min-value	0

4.3.9.2.2. FlsAcWrite

Item
Name	FlsAcWrite
Description	Address offset in RAM to which the write flash access code shall be loaded.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	16
Max-value	4294967295
Min-value	0

4.3.9.2.3. FlsCallCycle

Item
Name	FlsCallCycle
Description	Cycle time of calls of the flash driver’s main function (in seconds).
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	0.01
Max-value	100.0
Min-value	0.0

4.3.9.2.4. FlsDefaultMode

Item
Name	FlsDefaultMode
Description	This parameter is the default FLS device mode after initialization.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	MEMIF_MODE_SLOW
Range	MEMIF_MODE_FAST MEMIF_MODE_SLOW

4.3.9.2.5. FlsJobEndNotification

Item
Name	FlsJobEndNotification
Description	Mapped to the job end notification routine provided by some upper layer module, typically the Fee module.
Multiplicity-Configuration-Class	–
Post-Build Time	VARIANT-POST-BUILD
Pre-Compile Time	VARIANT-PRE-COMPILE
Origin	AUTOSAR_ECUC
Post-build-variant-multiplicity	true
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	NULL_PTR

4.3.9.2.6. FlsJobErrorNotification

Item
Name	FlsJobErrorNotification
Description	Mapped to the job error notification routine provided by some upper layer module, typically the Fee module.
Multiplicity-Configuration-Class	–
Post-Build Time	VARIANT-POST-BUILD
Pre-Compile Time	VARIANT-PRE-COMPILE
Origin	AUTOSAR_ECUC
Post-build-variant-multiplicity	true
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	NULL_PTR

4.3.9.2.7. FlsMaxReadFastMode

Item
Name	FlsMaxReadFastMode
Description	The maximum number of bytes to read or compare in one cycle of the flash driver’s job processing function in fast mode.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	16
Max-value	4294967295
Min-value	0

4.3.9.2.8. FlsMaxWriteFastMode

Item
Name	FlsMaxWriteFastMode
Description	The maximum number of bytes to read or compare in one cycle of the flash driver’s job processing function in fast mode.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	16
Max-value	4294967295
Min-value	0

4.3.9.2.9. FlsMaxReadNormalMode

Item
Name	FlsMaxReadNormalMode
Description	The maximum number of bytes to read or compare in one cycle of the flash driver’s job processing function in normal mode.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	16
Max-value	4294967295
Min-value	0

4.3.9.2.10. FlsMaxWriteNormalMode

Item
Name	FlsMaxWriteNormalMode
Description	The maximum number of bytes to write in one cycle of the flash driver’s job processing function in normal mode. It must be 8 bytes or 16 bytes
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	16
Max-value	16
Min-value	8

4.3.9.2.11. FlsProtection

Item
Name	FlsProtection
Description	Erase/write protection settings. Only relevant if supported by hardware. Currently, not supported by Hardware.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	0
Max-value	4294967295
Min-value	0

4.3.9.2.12. Fls_CMDWEPROTA

Item
Name	Fls_CMDWEPROTA
Description	Erase/write protection settings. CMDWEPROTA controls program/erase protection for first 32 sectors. Each bit allows users to enable/disable protection for each sector. Eg: Bit 0 allows protection configuration for Sectors 0. A value of 0 disables protection and a value of 1 enables protection from program/erase
Origin	Texas Instruments
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	0
Max-value	4294967295
Min-value	0

4.3.9.2.13. Fls_CMDWEPROTB

Item
Name	Fls_CMDWEPROTB
Description	Erase/write protection settings. CMDWEPROTB controls program/erase protection for sectors 32 to 255. Each bit allows users to enable/disable protection for a group of eight sectors. Note - The first 4 bit fields are reserved (bits 0-3) and protection of bit 4 and above would begin at sector 32. Eg: Bit 4 allows protection configuration for Sectors 32-39. A value of 0 disables protection and a value of 1 enables protection from program/erase
Origin	Texas Instruments
Post-Build-Variant-Value	true
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	0
Max-value	4294967295
Min-value	0

4.3.9.2.14. FlsExternalDriver

This container is present for external Flash drivers only. Internal Flash drivers do not use the parameter listed in this container, hence its multiplicity is 0 for internal drivers. Currently, not supported as only internal flash is present.

4.3.9.2.14.1. FlsSpiReference

Item
Name	FlsSpiReference
Description	Reference to SPI sequence (required for external Flash drivers).
Multiplicity-Configuration-Class	–
Post-Build Time	VARIANT-POST-BUILD
Pre-Compile Time	VARIANT-PRE-COMPILE
Origin	AUTOSAR_ECUC
Post-build-variant-multiplicity	false
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE

4.3.9.2.15. FlsSectorList

List of flashable sectors and pages.

4.3.9.2.16. FlsSector

Configuration description of a flashable sector

4.3.9.2.16.1. FlsNumberOfSectors

Item
Name	FlsNumberOfSectors
Description	Number of continuous sectors with identical values for FlsSectorSize and
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	1
Max-value	65535
Min-value	0

4.3.9.2.16.2. FlsPageSize

Item
Name	FlsPageSize
Description	Size of one page of this sector.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	256
Max-value	4294967295
Min-value	0

4.3.9.2.16.3. FlsSectorSize

Item
Name	FlsSectorSize
Description	Size of this sector.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	2048
Max-value	4294967295
Min-value	0

4.3.9.2.16.4. FlsSectorStartaddress

Item
Name	FlsSectorStartaddress
Description	Start address of this sector.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	0
Max-value	4294967295
Min-value	0

4.3.9.3. FlsGeneral

Container for general parameters of the flash driver. These parameters are always pre-compile.

4.3.9.3.1. FlsDeviceVariant

Item
Name	FlsDeviceVariant
Description	Select required Device Variant.
Origin	Texas Instruments
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	F29H85x
Range	F29H85x

4.3.9.3.2. FlsAcLoadOnJobStart

Item
Name	FlsAcLoadOnJobStart
Description	The flash driver shall load the flash access code to RAM whenever an erase or write job is started and unload (overwrite) it after that job has been finished or canceled.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	false

4.3.9.3.3. FlsBaseAddress

Item
Name	FlsBaseAddress
Description	The flash memory start address (see also SWS_Fls_00208 and SWS_Fls_00209).
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	281018368
Max-value	4294967295
Min-value	0

4.3.9.3.4. FlsTotalSize

Item
Name	FlsTotalSize
Description	The total amount of flash memory in bytes (see also SWS_Fls_00208 and SWS_Fls_00209).
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	262144
Max-value	4294967295
Min-value	0

4.3.9.3.5. FlsNumBanks

Item
Name	FlsNumBanks
Description	The number of banks present in the current device.
Origin	Texas Instruments
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	1
Max-value	4294967295
Min-value	0

4.3.9.3.6. FlsSectorSizeInBytes

Item
Name	FlsSectorSizeInBytes
Description	The flash memory’s sector size in bytes.
Origin	Texas Instruments
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	2048
Max-value	4294967295
Min-value	0

4.3.9.3.7. FlsBlankCheckApi

Item
Name	FlsBlankCheckApi
Description	Compile switch to enable/disable the Fls_BlankCheck function.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	false

4.3.9.3.8. FlsCancelApi

Item
Name	FlsCancelApi
Description	Compile switch to enable and disable the Fls_Cancel function.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	true

4.3.9.3.9. FlsCompareApi

Item
Name	FlsCompareApi
Description	Compile switch to enable and disable the Fls_Compare function.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	false

4.3.9.3.10. FlsDevErrorDetect

Item
Name	FlsDevErrorDetect
Description	Switches the development error detection and notification on or off.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	true

4.3.9.3.11. FlsDriverIndex

Item
Name	FlsDriverIndex
Description	Index of the driver, used by FEE.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	0
Max-value	254
Min-value	0

4.3.9.3.12. FlsEraseVerificationEnabled

Item
Name	FlsEraseVerificationEnabled
Description	Compile switch to enable erase verification.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	false

4.3.9.3.13. FlsGetJobResultApi

Item
Name	FlsGetJobResultApi
Description	Compile switch to enable and disable the Fls_GetJobResult function.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	true

4.3.9.3.14. FlsGetStatusApi

Item
Name	FlsGetStatusApi
Description	Compile switch to enable and disable the Fls_GetStatus function.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	true

4.3.9.3.15. FlsSetModeApi

Item
Name	FlsSetModeApi
Description	Compile switch to enable and disable the Fls_SetMode function.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	false

4.3.9.3.16. FlsTimeoutSupervisionEnabled

Item
Name	FlsTimeoutSupervisionEnabled
Description	Compile switch to enable timeout supervision.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	false

4.3.9.3.17. FlsVersionInfoApi

Item
Name	FlsVersionInfoApi
Description	Pre-processor switch to enable / disable the API to read out the modules version information.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	true

4.3.9.3.18. FlsWriteVerificationEnabled

Item
Name	FlsWriteVerificationEnabled
Description	Compile switch to enable write verification.
Origin	AUTOSAR_ECUC
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	false

4.3.9.3.19. FlsWaitStates

Item
Name	FlsWaitStates
Description	defines the number of random access wait states. When CPU performs a read access to Flash, data is returned after (RWAIT + 1) SYSCLK cycles.
Origin	Texas Instruments
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Default-value	3
Max-value	3
Min-value	1

4.3.9.3.20. FlsCpuClockRef

Item
Name	FlsCpuClockRef
Description	Reference to the CPU clock configuration, which is set in the MCU driver configuration
Origin	Texas Instruments
Post-Build-Variant-Value	false
Value-Configuration-Class	–
Post-Build-Time	VARIANT-POST-BUILD
Pre-Compile-Time	VARIANT-PRE-COMPILE
Refer AUTOSAR_SWS_FlashDriver section: 10 Configuration specification for configuration parameters details

4.3.9.4. Steps To Configure Fls Module

1. Open EB Tresos configurator tool and load Mcu, Os, Dem and Fls modules.

2. Open Mcu and Dem Module to Configure Clock and Dem Error for Mcu and Fls.

3. Open FLS module plugin, Select the Config Variant (Pre-compile/Post-Build).

4. In FLS module plugin configure required parameters.

5. Save the configuration and generate the configuration.

4.3.9.4.1. Standard Configuration

Standard Parameters	Description	Default Value	Range	Unit
FlsJobEndNotification	Mapped to the job end notification routine provided by some upper layer module, typically the Fee module.	NA	NA	FUNCTION-NAME
FlsJobErrorNotification	Mapped to the job error notification routine provided by some upper layer module, typically the Fee module.	NA	NA	FUNCTION-NAME
FlsMaxReadNormalMode	The maximum number of bytes to read or compare in one cycle of the flash driver’s job processing function in normal mode.	16	0 .. 4294967295	INTEGER
FlsMaxWriteNormalMode	The maximum number of bytes to write in one cycle of the flash driver’s job processing function in normal mode.	16	0 .. 4294967295	INTEGER
FlsNumberOfSectors	Number of continuous sectors with identical configuration	128	0..65535	INTEGER
FlsPageSize	Size of one page of this sector.	NA	0 .. 4294967295	INTEGER
FlsSectorSize	Size of this sector.	2048	0 .. 4294967295	INTEGER
FlsSectorStartaddress	Start address of this sector.	0	0 .. 4294967295	INTEGER
FlsBlankCheckApi	Compile switch to enable/disable the Fls_BlankCheck function.	FALSE	TRUE FALSE	BOOLEAN
FlsCancelApi	Compile switch to enable and disable the Fls_Cancel function. Cancel API currently not supported.	TRUE	TRUE FALSE	BOOLEAN
FlsCompareApi	Compile switch to enable and disable the Fls_Compare function.	TRUE	TRUE FALSE	BOOLEAN
FlsDevErrorDetect	Switches the development error detection and notification on or off.	FALSE	TRUE FALSE	BOOLEAN
FlsDriverIndex	Index of the driver, used by FEE.	0	0..254	INTEGER
FlsEraseVerificationEnabled	Compile switch to enable erase verification. Currently not supported.	FALSE	TRUE FALSE	BOOLEAN
FlsGetJobResultApi	Compile switch to enable and disable the Fls_GetJobResult function.	TRUE	TRUE FALSE	BOOLEAN
FlsGetStatusApi	Compile switch to enable and disable the Fls_GetStatus function.	TRUE	TRUE FALSE	BOOLEAN
FlsSetModeApi	Compile switch to enable and disable the Fls_SetMode function. Not relevant as only one mode supported.	FALSE	TRUE FALSE	BOOLEAN
FlsTimeoutSupervisionEnabled	Compile switch to enable timeout supervision. Currently, not supported.	FALSE	TRUE FALSE	BOOLEAN
FlsUseInterrupts	Job processing triggered by hardware interrupt.	FALSE	TRUE FALSE	BOOLEAN
FlsVersionInfoApi	Pre-processor switch to enable / disable the API to read out the modules version information.	FALSE	TRUE FALSE	BOOLEAN

4.3.9.4.2. IP Specific Configuration

Standard Parameters	Description	Default Value	Range	Unit
FlsMemMapMode	This parameter is used to specify if the flash read operation should occur using the external flash memory map.	TRUE	TRUE FALSE	BOOLEAN
FlsOsCounterRef	This parameter contains a reference to the OsCounter, which is used by the FLS driver.	–	–	–
FlsDefaultOSCounterId	Default Os Counter Id if node reference to OsCounter ref FlsOsCounterRef is not set	0	0..16	INTEGER
FlsDeviceVariant	Select required Device Variant		–	ENUMERATION
FlsBaseAddress	The flash memory start address (see also SWS_Fls_00208 and SWS_Fls_00209).	3321888768	0..4294967295	INTEGER
FlsTotalSize	The total amount of flash memory in bytes (see also SWS_Fls_00208 and SWS_Fls_00209).	1073741824	0 .. 4294967295	INTEGER
FlsWriteVerificationEnabled	Compile switch to enable write verification. Currenly, not supported.	FALSE	TRUE FALSE	BOOLEAN
FlsErasedValue	The contents of an erased flash memory cell.	255	0 .. 4294967295	INTEGER
FlsEraseTime	Maximum time to erase one complete flash sector.	1000	0..INFINITY	FLOAT
FlsExpectedHwId	Unique identifier of the hardware device that is expected by this driver (the device for which this driver has been implemented).	23322	–	STRING
FlsSpecifiedEraseCycles	Number of erase cycles specified for the flash device (usually given in the device data sheet).	0	0..4294967295	INTEGER
FlsWriteTime	Maximum time to program one complete flash page.	1000	0..INFINITY	FLOAT
FlsEnableRegisterReadbackApi	Switch to indicate that the Fls_RegisterReadBack is supported	FALSE	TRUE FALSE	BOOLEAN

4.3.10. Examples

4.3.10.1. Overview of Fls_App_Example

• Fls_App_Example

  • Initializes clock using Mcu_Init()

  • Initialize Fls using Fls_Init()

  • Get Fls Version using Fls_GetVersionInfo()

  • Erase flash sector using Fls_Erase()

  • Perform the processing of jobs using Fls_MainFunction()

  • Read the result of the last job using Fls_GetJobResult()

  • Verify, whether a given memory area has been erased but not (yet) programmed using Fls_BlankCheck()

  • Write complete flash sector using Fls_Write()

  • Reads the flash memory using Fls_Read()

  • Check if the write operation was successful by comparing txBuf_test (hardcoded) with the actual data in flash using Fls_Compare()

  • Check if the read operation was successful by comparing rxBuf_test (previously read) with the actual data in flash

4.3.10.2. Setup required to run Fls_App_Example

• Install Code Composer Studio(CCS) latest version

• Install latest c29 compiler

• Connect the hardware and power up

• Connect the uart set up to check the log on serial console

4.3.10.3. How to run Fls_App_Example

• Open CCS and Import Fls_App_Example

• Build project then debug project

4.3.10.3.1. Sample Log of Fls_App_Example

    FLS Example: Sample Application - STARTS !!!
    APP_NAME : Variant - Pre Compile being used !!!
    FLS MCAL version info:1.0.0
    FLS MCAL Module/Driver:92.44
    FLS_APP: Configured operation on flash is from 0x0 address offset till 4096 bytes!!
    FLS_APP: Perform ERASE, WRITE, READ, BLANKCHECK, CANCEL, COMPARE, etc
    FLS_APP: Sector Erasing
    FLS_APP: Job Processing in Progress.
    FLS_APP: Job Ends: SUCCESS
    FLS_APP: Job Ends: SUCCESS
    FLS_APP: Get Job Result Passed, check done through Fls_GetJobResult API()
    FLS_APP: Blank Checking
    FLS_APP: Job Processing in Progress.
    FLS_APP: Job Ends: SUCCESS
    FLS_APP: Job Ends: SUCCESS
    FLS_APP: Writing 8-bytes, 16 bytes, 32 bytes, ...
    FLS_APP: Job Processing in Progress.
    FLS_APP: Job Ends: SUCCESS
    FLS_APP: Job Ends: SUCCESS

4.3.10.4. File Structure

📦f29h85x_mcal
┣ 📂build
┣ 📂docs
┣ 📂drivers
┣ 📂examples
┃ ┣ 📂AppUtils
┃ ┣ 📂Can
┃ ┣ 📂Cdd_Adc
┃ ┣ 📂Cdd_Sent
┃ ┣ 📂Cdd_Xbar
┃ ┣ 📂DeviceSupport
┃ ┣ 📂Dio
┃ ┣ 📂Fls
┃ ┃ ┗ 📂Fls_App_Example
┃ ┃ ┃ ┣ 📂CCS
┃ ┃ ┃ ┃ ┗ 📜Fls_App_Example.projectspec
┃ ┃ ┃ ┣ 📂Fls_Example_Config
┃ ┃ ┃ ┃ ┣ 📂config
┃ ┃ ┃ ┃ ┃ ┣ 📜Dem.xdm
┃ ┃ ┃ ┃ ┃ ┣ 📜EcuM.xdm
┃ ┃ ┃ ┃ ┃ ┣ 📜fls.xdm: Generated EB Tresos config file in .xdm format
┃ ┃ ┃ ┃ ┃ ┣ 📜Mcu.xdm
┃ ┃ ┃ ┃ ┃ ┣ 📜Os.xdm
┃ ┃ ┃ ┃ ┣ 📂include
┃ ┃ ┃ ┃ ┃ ┣ 📜Dem_Cfg.h
┃ ┃ ┃ ┃ ┃ ┣ 📜EcuM_Cfg.h
┃ ┃ ┃ ┃ ┃ ┣ 📜Fls_Cbk.h : defines callback notification functions.
┃ ┃ ┃ ┃ ┃ ┣ 📜Fls_Cfg.h : Contains the generated pre-compiler configuration header.
┃ ┃ ┃ ┃ ┃ ┣ 📜Mcu_Cfg.h
┃ ┃ ┃ ┃ ┃ ┣ 📜Os_Cfg.h
┃ ┃ ┃ ┃ ┣ 📂src
┃ ┃ ┃ ┃ ┃ ┣ 📜Dem_Cfg.c
┃ ┃ ┃ ┃ ┃ ┣ 📜EcuM_Cfg.c
┃ ┃ ┃ ┃ ┃ ┣ 📜Fls_Cfg.c : Contains the pre-build configuration parameters.
┃ ┃ ┃ ┃ ┃ ┣ 📜Mcu_PBcfg.c
┃ ┃ ┃ ┃ ┃ ┣ 📜Os_Cfg.c
┃ ┃ ┃ ┃ ┗ 📜CMakeLists.txt
┃ ┃ ┃ ┣ 📜CMakeLists.txt
┃ ┃ ┃ ┗ 📜Fls_App_Example.c
┃ ┣ 📂Gpt
┃ ┣ 📂Mcu
┃ ┣ 📂Port
┣ 📂plugins
┣ 📂tests
┣ 📜CMakeLists.txt
┗ 📜CMakePresets.json

4.3.11. References

AUTOSAR_SWS_FlashDriver
Technical Reference Manual
