5.13. CDD SENT Module Migration

Migration Approach: Follow sequential migration for clear understanding of changes at each version. Each migration is organized by individual changes with description, old vs new comparison, and migration actions.

5.13.1. v03.00.00 (i.e release v01.04.00) from v02.00.01 (i.e release v01.03.00) Migration

5.13.1.1. Summary

Version v03.00.00 introduces Resource Allocator as a mandatory architectural foundation and updates DEM configuration parameter naming. This represents a fundamental shift from direct parameter configuration to centralized resource management:

  1. Resource Allocator Introduction and Controller Configuration Updates: Resource Allocator becomes mandatory with CDD SENT controller configurations updated to reference Resource Allocator instances

  2. DEM Configuration Parameter Update: DEM event parameter reference name changed for consistency with module naming conventions

PREREQUISITE: Complete Resource Allocator Setup before proceeding.

5.13.1.2. Change 1: Resource Allocator Introduction and Controller Configuration Updates

5.13.1.2.1. Description

Resource Allocator becomes a mandatory architectural foundation for the CDD SENT module, with CDD SENT controller configurations updated to reference Resource Allocator instances. This represents a fundamental shift from direct parameter configuration to centralized resource management, where CDD SENT instances are allocated through Resource Allocator and then referenced by controller configurations.

5.13.1.2.2. Old vs New Configuration

Previous Configuration (v02.00.01): Direct parameter selection was used without Resource Allocator dependency.

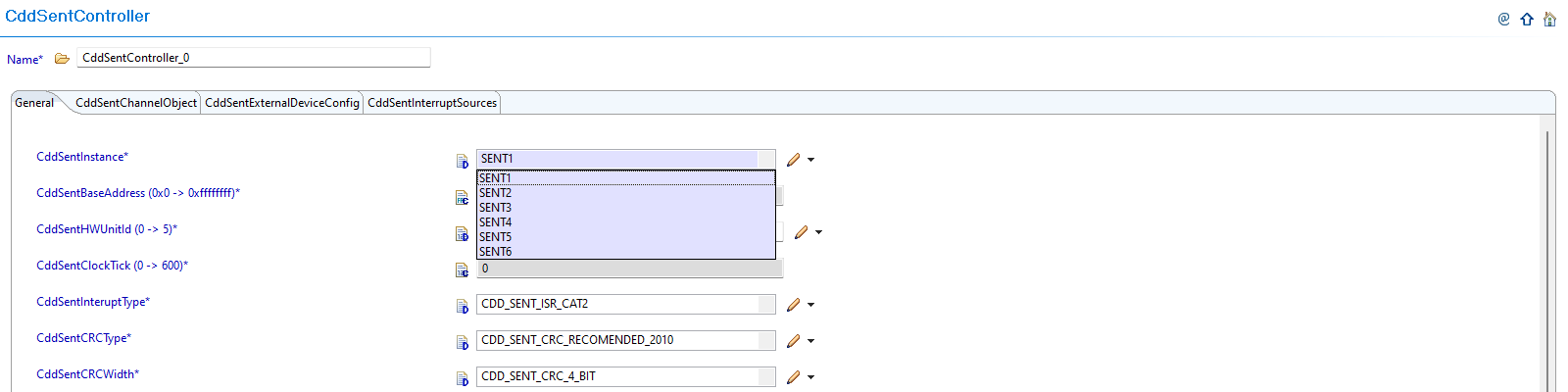

Old CDD SENT Config

Fig. 5.57 v02.00.01: Direct SENT controller parameter selection

New Configuration (v03.00.00): CDD SENT configurations now reference instances allocated through Resource Allocator.

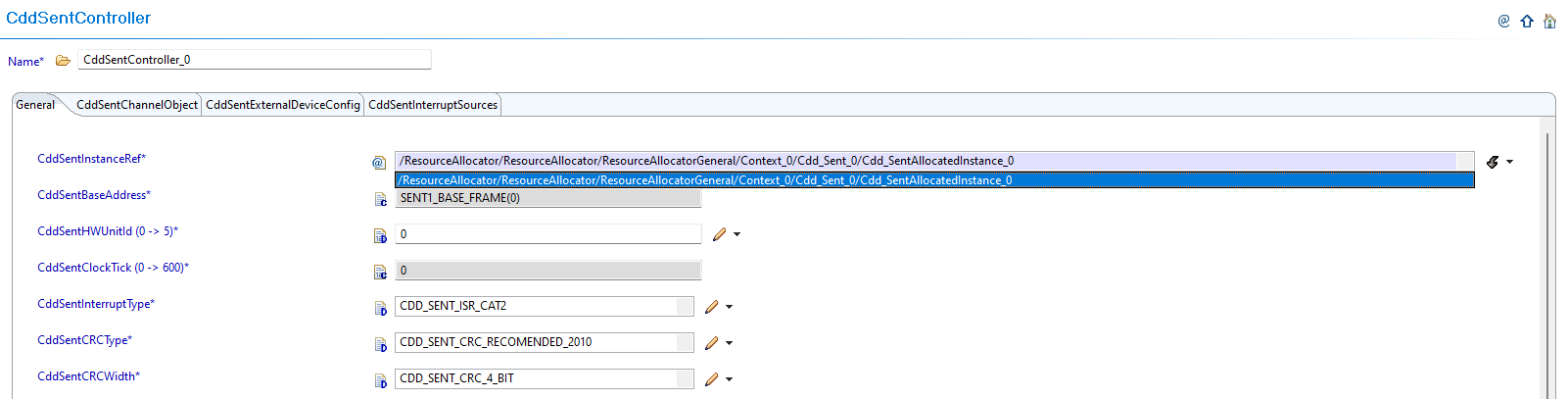

Select CDD SENT Instance

Fig. 5.58 v03.00.00: Set CddSentInstanceRef to point to the corresponding Cdd_SentAllocatedInstance in Resource Allocator

5.13.1.2.3. Migration Actions

  1. Setup Resource Allocator: Follow Resource Allocator Setup

  2. Navigate to Context: Navigate to ResourceAllocatorGeneral → Context → Cdd_Sent and add CDD SENT allocator:

Add CDD SENT Allocator

Fig. 5.59 Navigate to Context and add CDD SENT allocator

  1. Add CDD SENT Instance: Add Cdd_SentAllocatedInstance entries for each SENT instance your application requires:

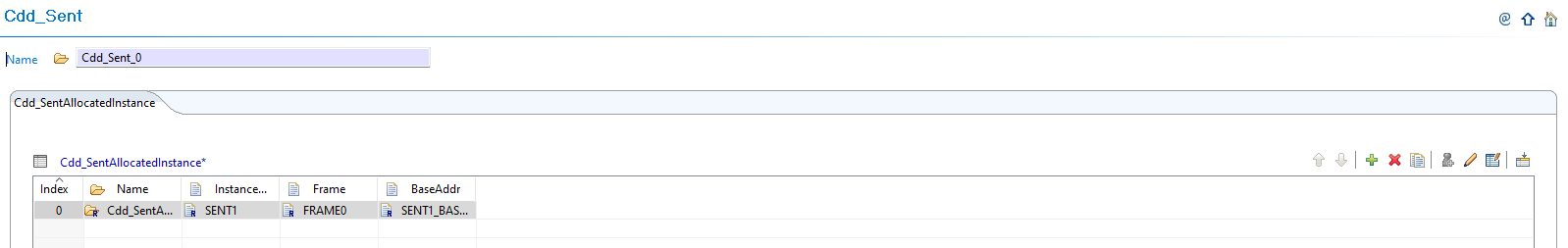

Add CDD SENT Instance

Fig. 5.60 Add Cdd_SentAllocatedInstance entries for each SENT instance your application requires

  1. Configure SENT Instance: Configure the InstanceName, Frame, and BaseAddr for each allocated instance:

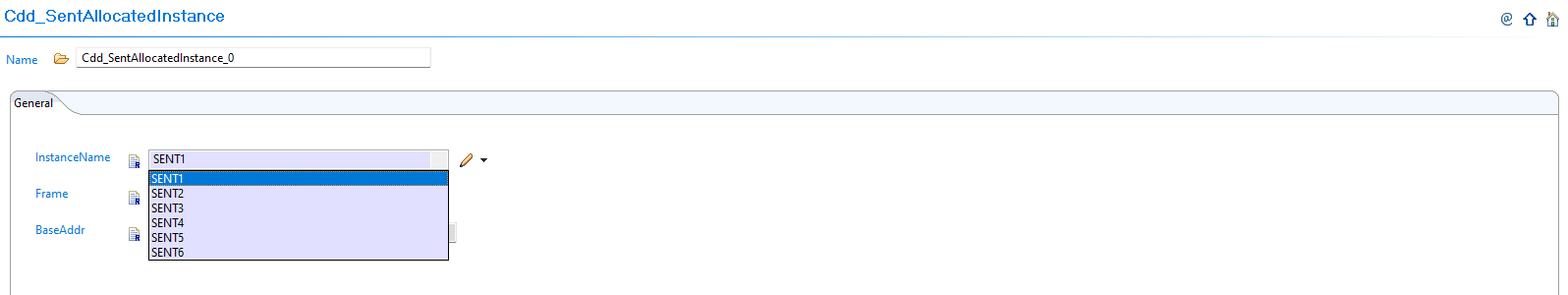

Configure CDD SENT Instance

Fig. 5.61 Configure the InstanceName, Frame, and BaseAddr for each allocated instance

  1. Complete Configuration: Finalize CDD SENT instance allocation

  2. Navigate to CddSentController: Navigate to Cdd → CddSentController and update configurations to reference the CDD SENT instances allocated in Resource Allocator

  3. Open Controller Configuration: Access the CddSentController configuration that needs to be updated

  4. Set Instance Reference: Set CddSentInstanceRef to point to the corresponding Cdd_SentAllocatedInstance in Resource Allocator

  5. Verify Automatic Derivation: Confirm that the CddSentBaseAddress parameter is now automatically derived from the Resource Allocator reference

5.13.1.3. Change 2: DEM Configuration Parameter Update

5.13.1.3.1. Description

Version v03.00.00 updates the DEM event parameter reference name for consistency with module naming conventions. The DEM event parameter is renamed to include the module-specific prefix for better identification and naming consistency.

5.13.1.3.2. Old vs New DEM Parameter Names

DEM Event Parameter Name Mapping:

v02.00.01

v03.00.00

CDD_E_HARDWARE_ERROR

CDD_SENT_E_HARDWARE_ERROR

Parameter Details:

  • Purpose: DEM event parameter for hardware error reporting

  • Change: Added module-specific prefix for better identification

  • Usage: If DEM error reporting is enabled in your configuration

5.13.1.3.3. Migration Actions

  1. Check DEM Configuration: Determine if DEM error reporting is enabled in your CDD SENT configuration

  2. Update DEM Event Reference: If DEM error reporting is enabled, update the DEM event parameter reference from CDD_E_HARDWARE_ERROR to CDD_SENT_E_HARDWARE_ERROR

  3. Update Application Code: If your application code directly references this DEM event parameter name, update all references to use the new naming convention

  4. Verify DEM Integration: Ensure DEM error reporting functionality works correctly with the updated parameter name

Note

The Resource Allocator module must be configured before the CDD SENT module to ensure correct instance availability. For more details on Resource Allocator configuration, see the Resource Allocator Module User Guide.

5.13.2. v02.00.00 (i.e release v01.03.00) from v01.00.00 (i.e release v01.02.00) Migration

5.13.2.1. Summary

Version v02.00.00 introduces schema compatibility updates to align with updated plugin structure and reference paths:

  1. AR-ELEMENT Name Change: Generated .xdm file AR-ELEMENT name requires updating for schema compatibility

  2. MODULE-CONFIGURATION Path Update: Generated .xdm file MODULE-CONFIGURATION definition path requires updating

  3. Reference Path Updates: Generated .xdm file reference paths require updating due to schema structure changes

Note

The CDD SENT v2.0.0 plugin contains updated schema definitions that are not backward compatible with v1.0.0 generated configurations. To use existing v1.0.0 configurations with the v2.0.0 plugin, the generated .xdm files (created by EB Tresos from your configuration) must be updated.

5.13.2.2. Change 1: AR-ELEMENT Name Change in Generated .xdm File

5.13.2.2.1. Description

When upgrading from v1.0.0 to v2.0.0, the generated .xdm file from EB Tresos contains AR-ELEMENT names that are not compatible with the new plugin schema. The AR-ELEMENT name needs to be updated in the generated .xdm file to ensure compatibility.

5.13.2.2.2. Old vs New AR-ELEMENT Configuration

Generated .xdm File AR-ELEMENT Name:

v01.00.00 Generated .xdm

v02.00.00 Required .xdm

<d:chc name="Cdd_Sent" type="AR-ELEMENT"

<d:chc name="Cdd" type="AR-ELEMENT"

5.13.2.2.3. Migration Actions

  1. Locate Generated .xdm File: Find your project’s generated .xdm file (created by EB Tresos from your configuration)

  2. Open File for Editing: Open the generated .xdm file in a text editor

  3. Find AR-ELEMENT Reference: Locate the line containing <d:chc name="Cdd_Sent" type="AR-ELEMENT"

  4. Update AR-ELEMENT Name: Change the AR-ELEMENT name from Cdd_Sent to Cdd

  5. Save File: Save the updated .xdm file

5.13.2.3. Change 2: MODULE-CONFIGURATION Path Update in Generated .xdm File

5.13.2.3.1. Description

The MODULE-CONFIGURATION definition path in the generated .xdm file needs to be updated to reflect the new schema structure. The path must include the additional Cdd component for proper module reference.

5.13.2.3.2. Old vs New MODULE-CONFIGURATION Path

Generated .xdm File MODULE-CONFIGURATION Path:

v01.00.00 Generated .xdm

v02.00.00 Required .xdm

<a:a name="DEF" value="ASPath:/TI_F29H85x/Cdd_Sent"/>

<a:a name="DEF" value="ASPath:/TI_F29H85x/Cdd_Sent/Cdd"/>

5.13.2.3.3. Migration Actions

  1. Continue Editing .xdm File: In the same generated .xdm file being edited

  2. Find MODULE-CONFIGURATION Path: Locate the line containing <a:a name="DEF" value="ASPath:/TI_F29H85x/Cdd_Sent"/>

  3. Update Definition Path: Change the MODULE-CONFIGURATION path from ASPath:/TI_F29H85x/Cdd_Sent to ASPath:/TI_F29H85x/Cdd_Sent/Cdd

  4. Verify Path Structure: Ensure the updated path includes the additional /Cdd component

  5. Save Changes: Save the updated .xdm file

5.13.2.4. Change 3: Reference Path Updates in Generated .xdm File

5.13.2.4.1. Description

Any REFERENCE type parameters in the generated .xdm file that refer to other CDD SENT parameters by their schema path must be updated due to the schema structure change. All internal reference paths need to be updated to reflect the new schema hierarchy.

5.13.2.4.2. Old vs New Reference Paths

Generated .xdm File Reference Path Example:

For any reference parameters expecting reference to a SENT configuration:

v01.00.00 Generated .xdm Reference Path

v02.00.00 Required .xdm Reference Path

/Cdd_Sent/Cdd_Sent/CddSentConfigSet/...

/Cdd_Sent/Cdd/CddSentConfigSet/...

5.13.2.4.3. Migration Actions

  1. Continue Editing .xdm File: In the same generated .xdm file being edited

  2. Search for Reference Paths: Find all REFERENCE type parameters that contain /Cdd_Sent/Cdd_Sent/ in their paths

  3. Update Reference Paths: Change all occurrences of /Cdd_Sent/Cdd_Sent/ to /Cdd_Sent/Cdd/

  4. Verify All Updates: Ensure all reference paths now use the correct schema hierarchy

  5. Save Final Changes: Save the completely updated .xdm file

Generated .xdm File Structure Comparison:

Before Editing (v01.00.00 Generated .xdm File):

<d:lst type="TOP-LEVEL-PACKAGES">
<d:ctr name="Cdd_Sent" type="AR-PACKAGE">
<d:lst type="ELEMENTS">
<d:chc name="Cdd_Sent" type="AR-ELEMENT" value="MODULE-CONFIGURATION">
<d:ctr type="MODULE-CONFIGURATION">
<a:a name="DEF" value="ASPath:/TI_F29H85x/Cdd_Sent"/>

After Editing (v02.00.00 Compatible .xdm File):

<d:lst type="TOP-LEVEL-PACKAGES">
<d:ctr name="Cdd_Sent" type="AR-PACKAGE">
<d:lst type="ELEMENTS">
<d:chc name="Cdd" type="AR-ELEMENT" value="MODULE-CONFIGURATION">
<d:ctr type="MODULE-CONFIGURATION">
<a:a name="DEF" value="ASPath:/TI_F29H85x/Cdd_Sent/Cdd"/>

Note

Only the generated .xdm files (created by EB Tresos from your configuration) can be modified. The plugin .xdm files themselves cannot and should not be modified.
