5.11. CDD ECAP Module Migration

Migration Approach: Follow sequential migration for clear understanding of changes at each version. Each migration is organized by individual changes with description, old vs new comparison, and migration actions.

5.11.1. v03.00.00 (i.e release v01.04.00) from v02.00.00 (i.e release v01.03.00) Migration

5.11.1.1. Summary

Version v03.00.00 introduces Resource Allocator as a mandatory architectural foundation. This represents a fundamental shift from direct parameter configuration to centralized resource management:

1. Resource Allocator Introduction and Channel Configuration Updates: Resource Allocator becomes mandatory with CDD ECAP channel configurations updated to reference Resource Allocator instances

PREREQUISITE: Complete Resource Allocator Setup before proceeding.

5.11.1.2. Change 1: Resource Allocator Introduction and Channel Configuration Updates

5.11.1.2.1. Description

Resource Allocator becomes a mandatory architectural foundation for the CDD ECAP module, with CDD ECAP channel configurations updated to reference Resource Allocator instances. This represents a fundamental shift from direct parameter configuration to centralized resource management, where CDD ECAP instances are allocated through Resource Allocator and then referenced by channel configurations.

5.11.1.2.2. Old vs New Configuration

Previous Configuration (v02.00.00): Direct parameter selection was used without Resource Allocator dependency.

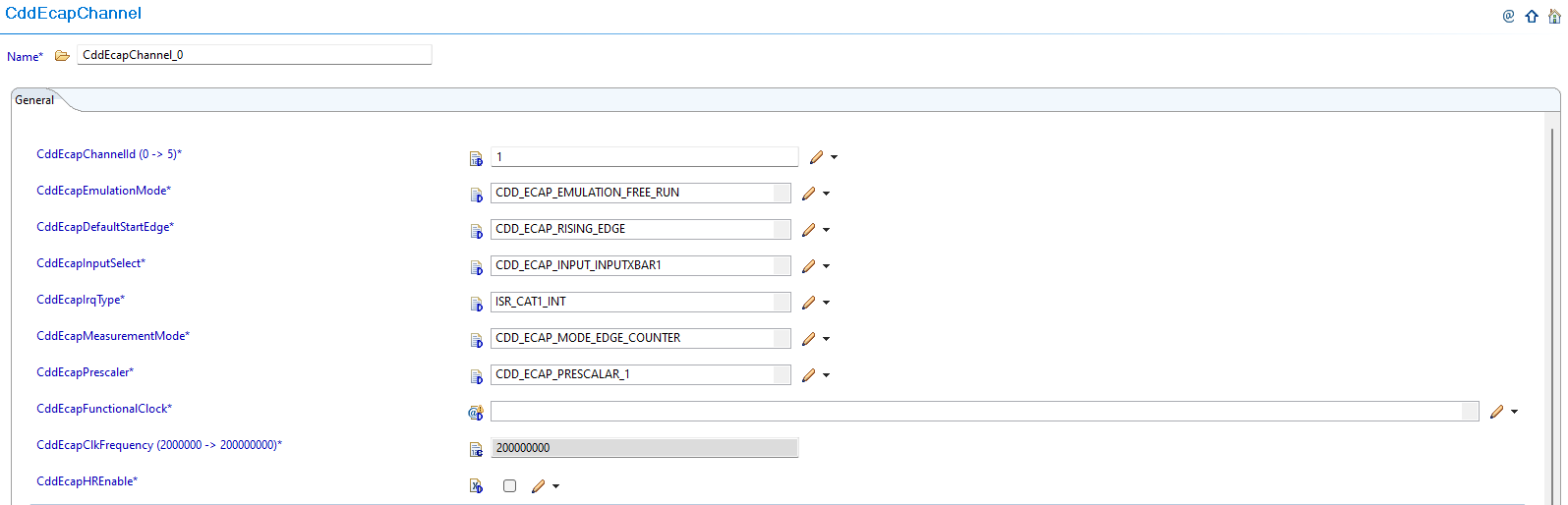

Fig. 5.48 v02.00.00: Direct ECAP channel parameter selection

New Configuration (v03.00.00): CDD ECAP channel configurations now reference instances allocated through Resource Allocator.

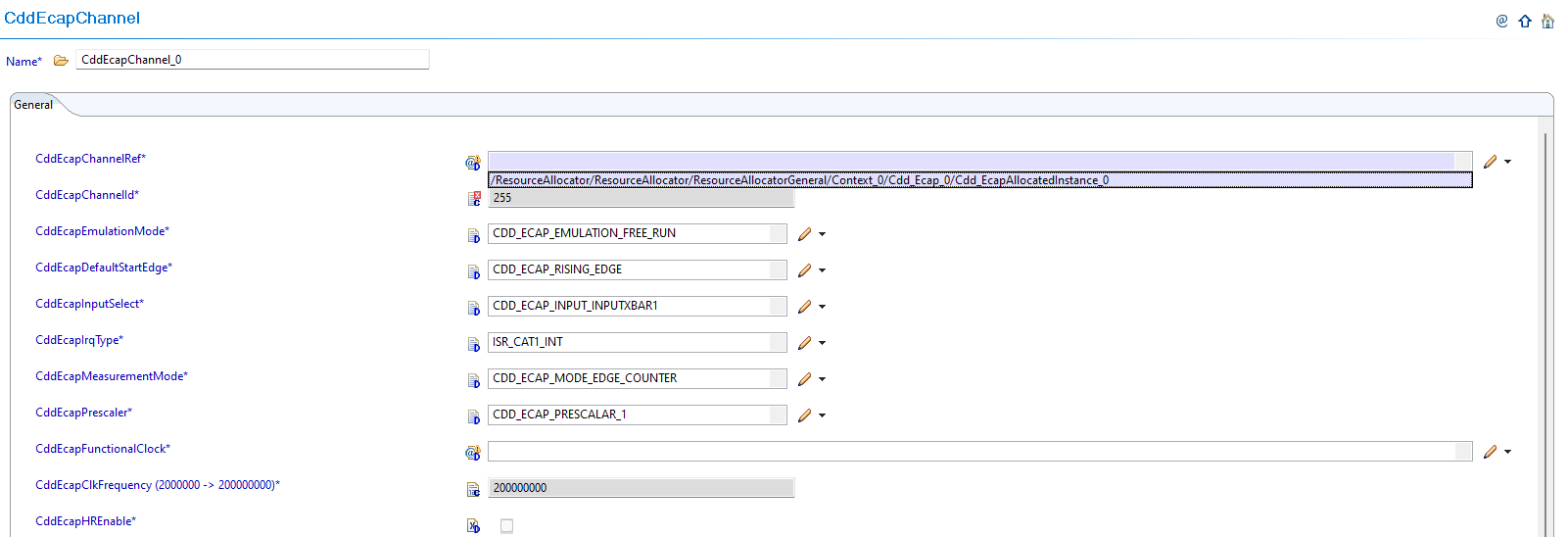

Fig. 5.49 v03.00.00: Update CddEcapChannelRef to reference the corresponding Resource Allocator’s Cdd_EcapAllocatedInstance

5.11.1.2.3. Migration Actions

1. Setup Resource Allocator: Follow Resource Allocator Setup

2. Navigate to Context: Navigate to ResourceAllocatorGeneral → Context → Cdd_Ecap and add CDD ECAP allocator:

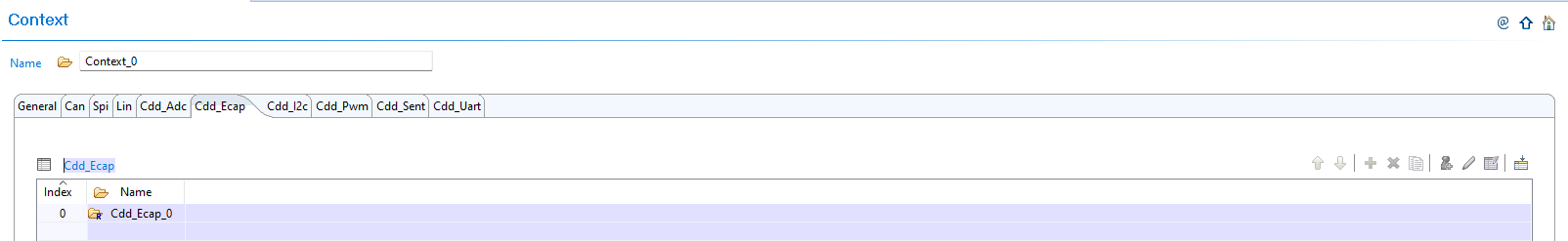

Fig. 5.50 Navigate to Context and add CDD ECAP allocator

3. Add CDD ECAP Instance: Add Cdd_EcapAllocatedInstance entries for each ECAP instance your application requires:

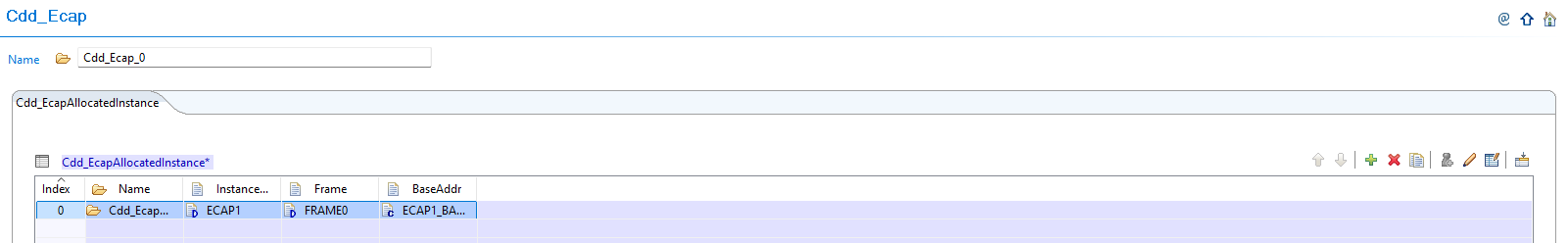

Fig. 5.51 Add Cdd_EcapAllocatedInstance entries for each ECAP instance your application requires

4. Configure ECAP Instance: Set the appropriate InstanceName for each allocated instance:

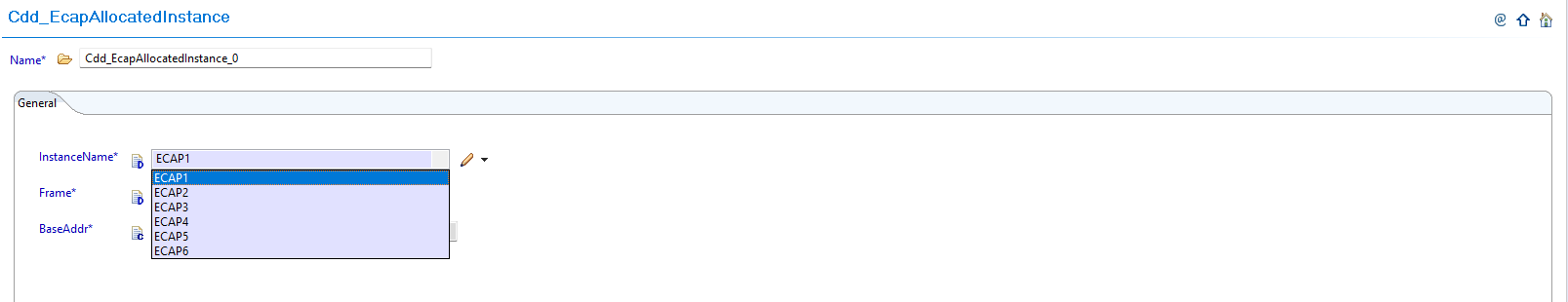

Fig. 5.52 Set the appropriate InstanceName (e.g., ECAP1, ECAP2, etc.)

5. Complete Configuration: Finalize CDD ECAP instance allocation

6. Navigate to CddEcapChannel: Navigate to Cdd → CddEcapChannel and update configurations to reference the CDD ECAP instances allocated in Resource Allocator

7. Open Channel Configuration: Access the CddEcapChannel configuration that needs to be updated

8. Set Instance Reference: Set CddEcapChannelRef to point to the corresponding Cdd_EcapAllocatedInstance in Resource Allocator

9. Verify Automatic Derivation: Confirm that the CddEcapChannelId parameter is now automatically derived from the Resource Allocator reference

Note

The Resource Allocator module must be configured before the CDD ECAP module to ensure correct instance availability. Available ECAP instances are determined by the Resource Allocator’s Cdd_EcapAllocatedInstance configuration for the current context.

5.11.2. v02.00.00 (i.e release v01.03.00) from v01.00.00 (i.e release v01.02.00) Migration

5.11.2.1. Summary

Version v02.00.00 introduces new parameters for enhanced functionality and high-resolution capture capabilities while maintaining backward compatibility for basic ECAP operations:

1. Emulation Mode Support: CddEcapEmulationMode parameter added for debug scenarios

2. High-Resolution Mode Features: CddEcapHREnable and CddEcapHRConfigApi parameters added for finer capture resolution

5.11.2.2. Change 1: Emulation Mode Support

5.11.2.2.1. Description

Version v02.00.00 introduces emulation mode support for debug scenarios through the new CddEcapEmulationMode parameter. This parameter controls ECAP behavior during debug and emulation operations.

5.11.2.2.2. Old vs New Parameter Configuration

New Parameter Added:

Parameter	v01.00.00	v02.00.00
CddEcapEmulationMode	Not available	Added for debug/emulation control

Parameter Details:

• Purpose: Controls ECAP behavior during debug/emulation scenarios

• Location: CddEcapChannel container

• Configuration: Required for debug setup compatibility

5.11.2.2.3. Migration Actions

1. Navigate to CddEcapChannel: Open CddEcapChannel container in EB Tresos

2. Configure Emulation Mode: Set the CddEcapEmulationMode parameter as required for your debug setup

3. Verify Debug Compatibility: Ensure the emulation mode setting matches your development and debug environment requirements

5.11.2.3. Change 2: High-Resolution Mode Features

5.11.2.3.1. Description

Version v02.00.00 introduces high-resolution (HR) mode capabilities for finer capture resolution through two new parameters: CddEcapHREnable and CddEcapHRConfigApi. These features are optional and provide enhanced capture precision when required.

5.11.2.3.2. Old vs New Parameter Configuration

New Parameters Added:

Parameter	v01.00.00	v02.00.00
CddEcapHREnable	Not available	Added for high-resolution capture functionality
CddEcapHRConfigApi	Not available	Added for high-resolution API functions

Parameter Details:

• CddEcapHREnable: Enable high-resolution mode for finer capture resolution

• CddEcapHRConfigApi: Enable/disable high-resolution API functions

• Usage: Optional features - only enable if high-resolution capture is needed

5.11.2.3.3. Migration Actions

1. Evaluate HR Requirements: Determine if your application requires high-resolution capture functionality

2. Enable HR Mode (Optional): If finer capture resolution is needed, enable CddEcapHREnable parameter

3. Enable HR APIs (Optional): If high-resolution API functions are required, enable CddEcapHRConfigApi parameter

4. Maintain Compatibility: For applications not requiring HR features, leave parameters in default configuration to ensure backward compatibility

Important

For users migrating from v1.0.0 to v2.0.0 who do not require High-Resolution Mode features or Emulation Mode support, the default configurations ensure backward compatibility and will not affect your current working setup.
