ot::ThreadTlv Class Reference

This class implements Network Layer TLV generation and parsing. More...

#include <src/core/thread/thread_tlvs.hpp>

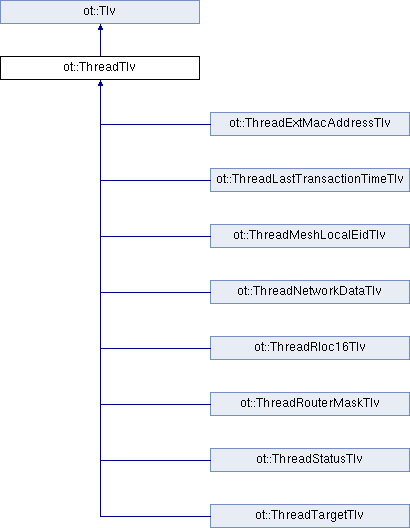

Inheritance diagram for ot::ThreadTlv:

Public Types
enum	Type {   kTarget = 0,   kExtMacAddress = 1,   kRloc16 = 2,   kMeshLocalEid = 3,   kStatus = 4,   kLastTransactionTime = 6,   kRouterMask = 7,   kNDOption = 8,   kNDData = 9,   kThreadNetworkData = 10 }
	Network Layer TLV Types. More...

Public Member Functions
Type	GetType (void) const
	This method returns the Type value. More...
void	SetType (Type aType)
	This method sets the Type value. More...
Public Member Functions inherited from ot::Tlv
	Tlv (void)
	Default constructor.
uint8_t	GetType (void) const
	This method returns the Type value. More...
void	SetType (uint8_t aType)
	This method sets the Type value. More...
uint8_t	GetLength (void) const
	This method returns the Length value. More...
void	SetLength (uint8_t aLength)
	This method sets the Length value. More...
uint8_t	GetSize (void) const
	This method returns the total size including Type, Length, and Value fields. More...
uint8_t *	GetValue (void)
	This method returns a pointer to the Value. More...
const uint8_t *	GetValue (void) const
	This method returns a pointer to the Value. More...
Tlv *	GetNext (void)
	This method returns a pointer to the next TLV. More...
const Tlv *	GetNext (void) const
	This method returns a pointer to the next TLV. More...

Static Public Member Functions
static otError	GetTlv (const Message &aMessage, Type aType, uint16_t aMaxLength, Tlv &aTlv)
	This static method reads the requested TLV out of aMessage. More...
Static Public Member Functions inherited from ot::Tlv
static otError	Get (const Message &aMessage, uint8_t aType, uint16_t aMaxLength, Tlv &aTlv)
	This static method reads the requested TLV out of aMessage. More...
static otError	GetOffset (const Message &aMessage, uint8_t aType, uint16_t &aOffset)
	This static method obtains the offset of a TLV within aMessage. More...
static otError	GetValueOffset (const Message &aMesasge, uint8_t aType, uint16_t &aOffset, uint16_t &aLength)
	This static method finds the offset and length of a given TLV type. More...

Additional Inherited Members
Protected Types inherited from ot::Tlv
enum	{ kExtendedLength = 255 }
	Length values. More...

Detailed Description

This class implements Network Layer TLV generation and parsing.

Member Enumeration Documentation

Type

enum ot::ThreadTlv::Type

Network Layer TLV Types.

Enumerator
kTarget	Target EID TLV.
kExtMacAddress	Extended MAC Address TLV.
kRloc16	RLOC16 TLV.
kMeshLocalEid	ML-EID TLV.
kStatus	Status TLV.
kLastTransactionTime	Time Since Last Transaction TLV.
kRouterMask	Router Mask TLV.
kNDOption	ND Option TLV.
kNDData	ND Data TLV.
kThreadNetworkData	Thread Network Data TLV.

Member Function Documentation

GetTlv()

static otError ot::ThreadTlv::GetTlv ( const Message &  aMessage, Type  aType, uint16_t  aMaxLength, Tlv &  aTlv  )

inlinestatic

This static method reads the requested TLV out of aMessage.

Parameters

[in]	aMessage	A reference to the message.
[in]	aType	The Type value to search for.
[in]	aMaxLength	Maximum number of bytes to read.
[out]	aTlv	A reference to the TLV that will be copied to.

Return values

OT_ERROR_NONE	Successfully copied the TLV.
OT_ERROR_NOT_FOUND	Could not find the TLV with Type aType.

GetType()

Type ot::ThreadTlv::GetType ( void  ) const

inline

This method returns the Type value.

Returns

The Type value.

SetType()

void ot::ThreadTlv::SetType ( Type  aType )

inline

This method sets the Type value.

Parameters

[in]

aType

The Type value.

---

The documentation for this class was generated from the following file:

• src/core/thread/thread_tlvs.hpp
