ot::Tlv Class Reference

This class implements TLV generation and parsing. More...

#include <src/core/common/tlvs.hpp>

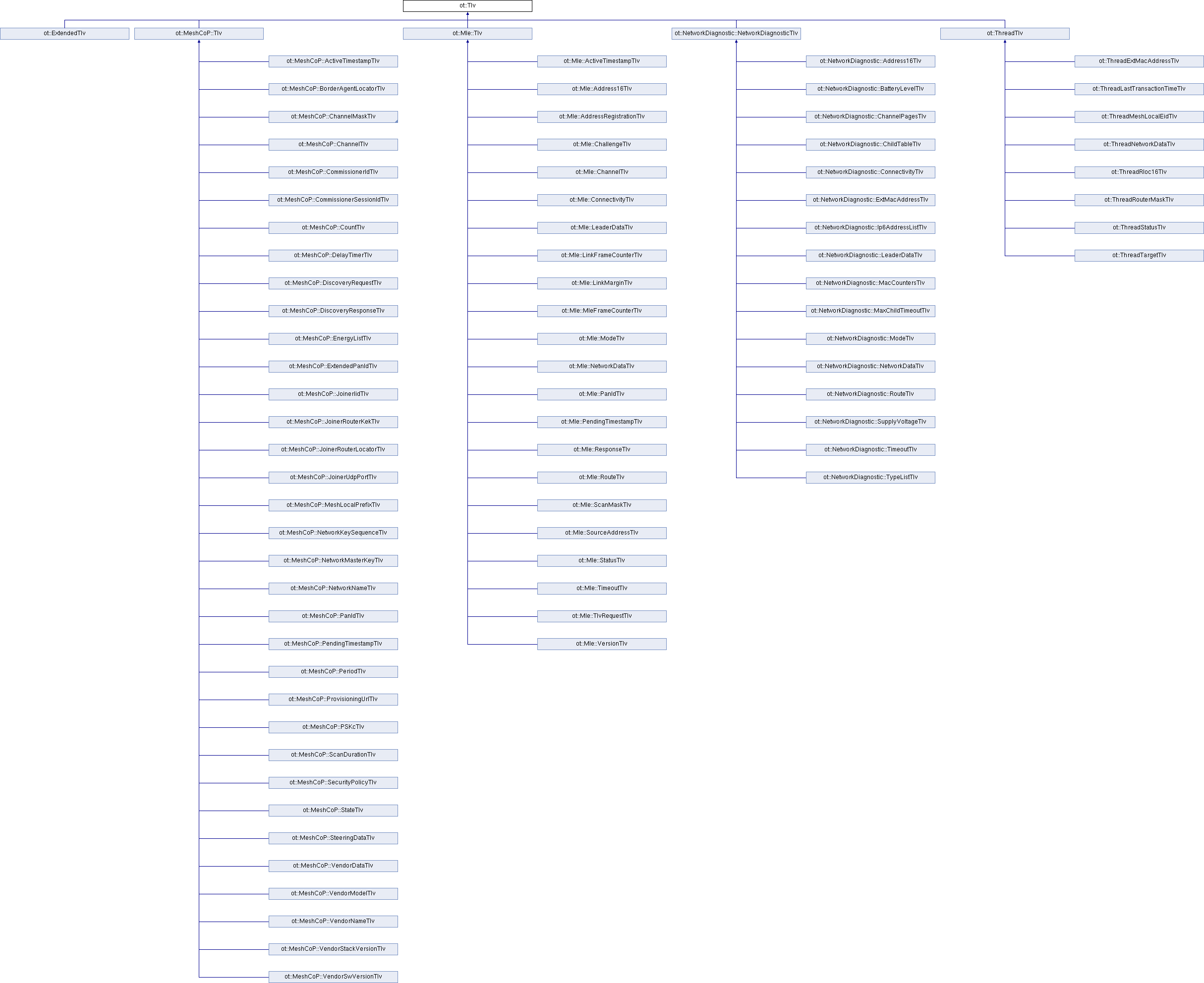

Inheritance diagram for ot::Tlv:

Public Member Functions
	Tlv (void)
	Default constructor.
uint8_t	GetType (void) const
	This method returns the Type value. More...
void	SetType (uint8_t aType)
	This method sets the Type value. More...
uint8_t	GetLength (void) const
	This method returns the Length value. More...
void	SetLength (uint8_t aLength)
	This method sets the Length value. More...
uint8_t	GetSize (void) const
	This method returns the total size including Type, Length, and Value fields. More...
uint8_t *	GetValue (void)
	This method returns a pointer to the Value. More...
const uint8_t *	GetValue (void) const
	This method returns a pointer to the Value. More...
Tlv *	GetNext (void)
	This method returns a pointer to the next TLV. More...
const Tlv *	GetNext (void) const
	This method returns a pointer to the next TLV. More...

Static Public Member Functions
static otError	Get (const Message &aMessage, uint8_t aType, uint16_t aMaxLength, Tlv &aTlv)
	This static method reads the requested TLV out of aMessage. More...
static otError	GetOffset (const Message &aMessage, uint8_t aType, uint16_t &aOffset)
	This static method obtains the offset of a TLV within aMessage. More...
static otError	GetValueOffset (const Message &aMesasge, uint8_t aType, uint16_t &aOffset, uint16_t &aLength)
	This static method finds the offset and length of a given TLV type. More...

Protected Types
enum	{ kExtendedLength = 255 }
	Length values. More...

Detailed Description

This class implements TLV generation and parsing.

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Length values.

Enumerator
kExtendedLength	Extended Length value.

Member Function Documentation

Get()

otError ot::Tlv::Get ( const Message &  aMessage, uint8_t  aType, uint16_t  aMaxLength, Tlv &  aTlv  )

static

This static method reads the requested TLV out of aMessage.

Parameters

[in]	aMessage	A reference to the message.
[in]	aType	The Type value to search for.
[in]	aMaxLength	Maximum number of bytes to read.
[out]	aTlv	A reference to the TLV that will be copied to.

Return values

OT_ERROR_NONE	Successfully copied the TLV.
OT_ERROR_NOT_FOUND	Could not find the TLV with Type aType.

GetLength()

uint8_t ot::Tlv::GetLength ( void  ) const

inline

This method returns the Length value.

Returns

The Length value.

GetNext() [1/2]

Tlv* ot::Tlv::GetNext ( void  )

inline

This method returns a pointer to the next TLV.

Returns

A pointer to the next TLV.

GetNext() [2/2]

const Tlv* ot::Tlv::GetNext ( void  ) const

inline

This method returns a pointer to the next TLV.

Returns

A pointer to the next TLV.

GetOffset()

otError ot::Tlv::GetOffset ( const Message &  aMessage, uint8_t  aType, uint16_t &  aOffset  )

static

This static method obtains the offset of a TLV within aMessage.

Parameters

[in]	aMessage	A reference to the message.
[in]	aType	The Type value to search for.
[out]	aOffset	A reference to the offset of the TLV.

Return values

OT_ERROR_NONE	Successfully copied the TLV.
OT_ERROR_NOT_FOUND	Could not find the TLV with Type aType.

GetSize()

uint8_t ot::Tlv::GetSize ( void  ) const

inline

This method returns the total size including Type, Length, and Value fields.

Returns

The total size include Type, Length, and Value fields.

GetType()

uint8_t ot::Tlv::GetType ( void  ) const

inline

This method returns the Type value.

Returns

The Type value.

GetValue() [1/2]

uint8_t* ot::Tlv::GetValue ( void  )

inline

This method returns a pointer to the Value.

Returns

A pointer to the value.

GetValue() [2/2]

const uint8_t* ot::Tlv::GetValue ( void  ) const

inline

This method returns a pointer to the Value.

Returns

A pointer to the value.

GetValueOffset()

otError ot::Tlv::GetValueOffset ( const Message &  aMesasge, uint8_t  aType, uint16_t &  aOffset, uint16_t &  aLength  )

static

This static method finds the offset and length of a given TLV type.

Parameters

[in]	aMessage	A reference to the message.
[in]	aType	The Type value to search for.
[out]	aOffset	The offset where the value starts.
[out]	aLength	The length of the value.

Return values

OT_ERROR_NONE	Successfully found the TLV.
OT_ERROR_NOT_FOUND	Could not find the TLV with Type aType.

SetLength()

void ot::Tlv::SetLength ( uint8_t  aLength )

inline

This method sets the Length value.

Parameters

[in]

aLength

The Length value.

SetType()

void ot::Tlv::SetType ( uint8_t  aType )

inline

This method sets the Type value.

Parameters

[in]

aType

The Type value.

---

The documentation for this class was generated from the following files:

• src/core/common/tlvs.hpp
• src/core/common/tlvs.cpp
