Packet Sniffer¶

Setting Up Ubiqua Protocol analyzer¶

Install the Required Software¶

Download the Ubilogix Ubiqua packet sniffer software from: https://www.ubilogix.com/ubiqua/
To get the drivers for the CC2531 dongle install the TI Packet sniffer from: https://www.ti.com/tool/packet-sniffer
To program the CC2531 install TI Flash Programmer from: https://www.ti.com/tool/flash-programmer

Required Hardware¶

The following board should be used with the Ubiqua Protocol Analyzer:

TI CC2531 USB Dongle: https://www.ti.com/tool/CC2531USB-RD
(optional) CC-debugger https://www.ti.com/tool/cc-debugger

The CC2531 dongle is pre-programmed with the packet sniffer firmware. It is not necessary to reprogram the CC2531 dongle.

Hardware Setup¶

Connect the CC2531 to the computer with Ubiqua installed.
If necessary, use SmartRF Flash Programmer with the cc-debugger to flash the CC2531 dongle. Use the hex image sniffer_fw_cc2531.hex at C:\Program Files (x86)\Texas Instruments\SmartRF Tools\Packet Sniffer\bin\general\firmware.

Running the Packet Sniffer¶

Connect the CC2531.
Start Ubiqua.
Select Menu → Device → Add Device, and choose the CC2531.

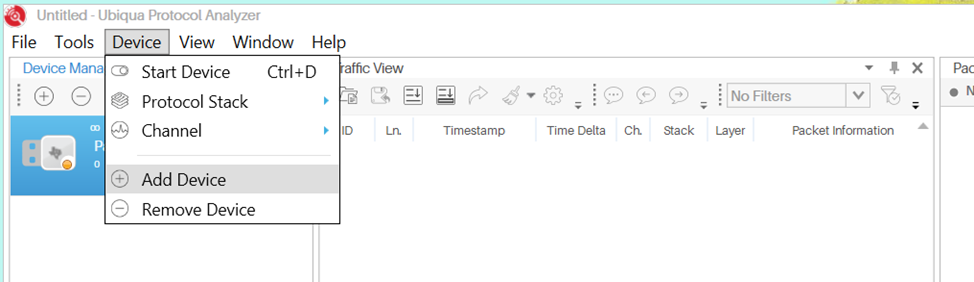

Figure 22. ubiqua add device

Set the Default Protocol to Thread select Menu → Tools → Options then select General → Default Protocol Stack and set it to Thread.

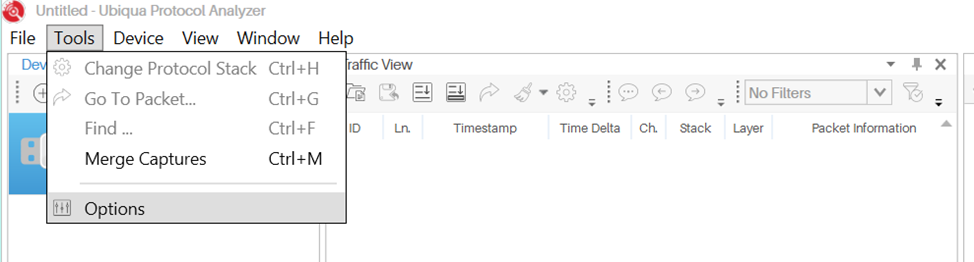

Figure 23. ubiqua options

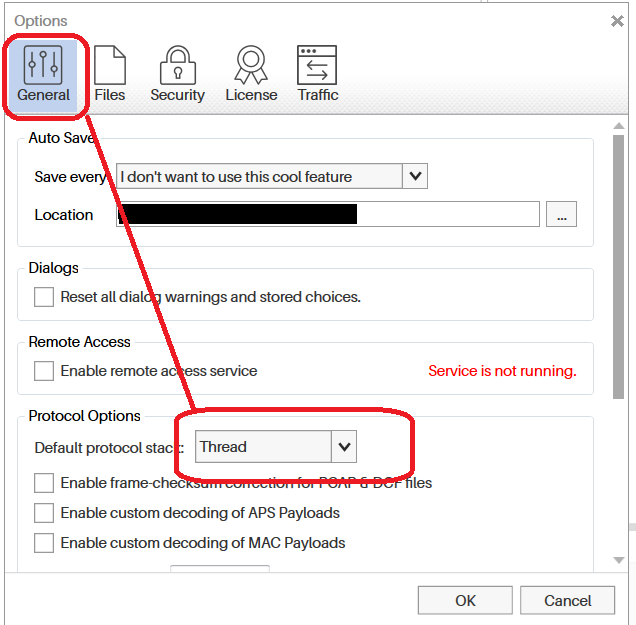

Figure 24. ubiqua select thread protocol option

Enter the default Thread Encryption keys.

Figure 25. ubiqua add device

From the Options → Security Tab → KeyChain, choose Add, then select Thread Master Key By default, the OpenThread Thread Master Key is: 00112233445566778899aabbccddeeff Click OK.

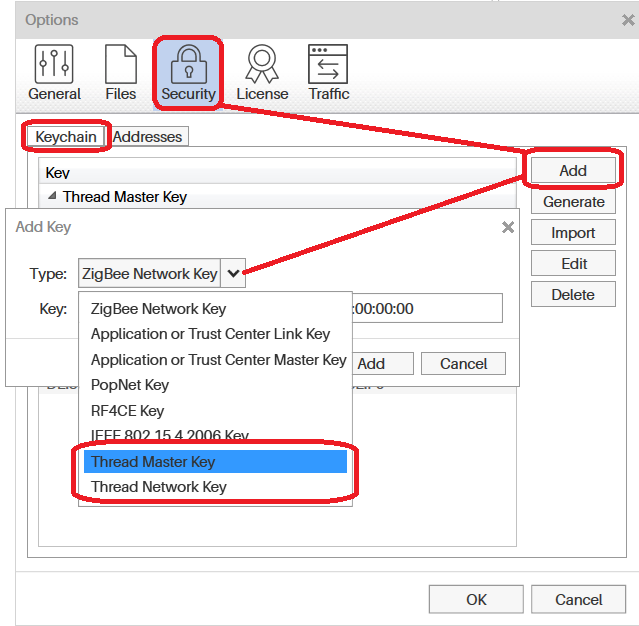

Figure 26. ubiqua add key option

Choose the Channel.

CLI device:	to choose the channel via the `channel` command.
NCP device:	is told via wpantund what channel to use via various configuration steps. (See the TI OpenThread Linux Quick Start Guide for details)

Figure 27. config channel

From Ubiqua, select Menu → Device Channel, and choose the matching channel.

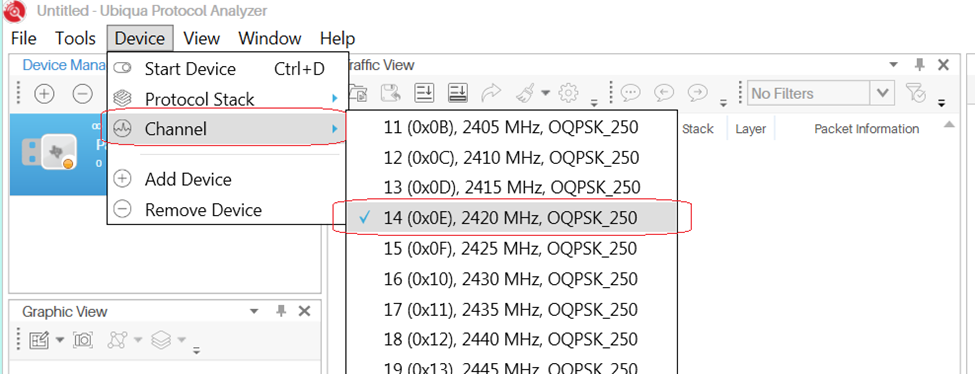

Figure 28. ubiqua select channel

Start Capture.

From Ubiqua, Select Menu → Device → Start Device.

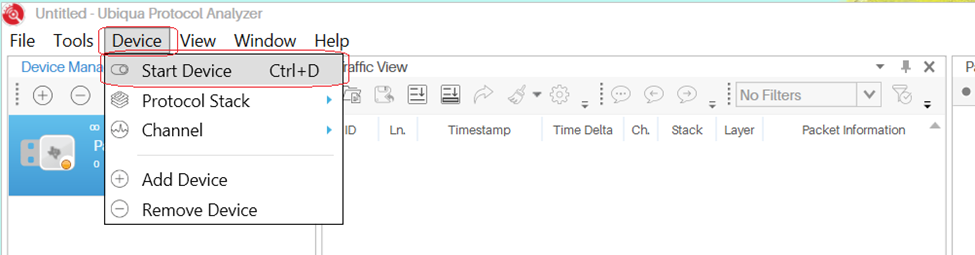

Figure 29. ubiqua start

If required, Select: Menu → View → Traffic View (or other selections) to view activity.

Setting Up Wireshark¶

To use a CC26x2 LaunchPad or other Texas Instruments device with Wireshark, download the SmartRF Protocol Packet Sniffer 2 and follow the User’s Guide to setup the Sniffer Agent.

Open the SmartRF Protocol Packet Sniffer 2 and Wireshark as seen in Figure 30.

Figure 30. Open Wireshark and Sniffer Agent

Edit the Wireshark preferences by going to Edit → Preferences as seen in Figure 31.

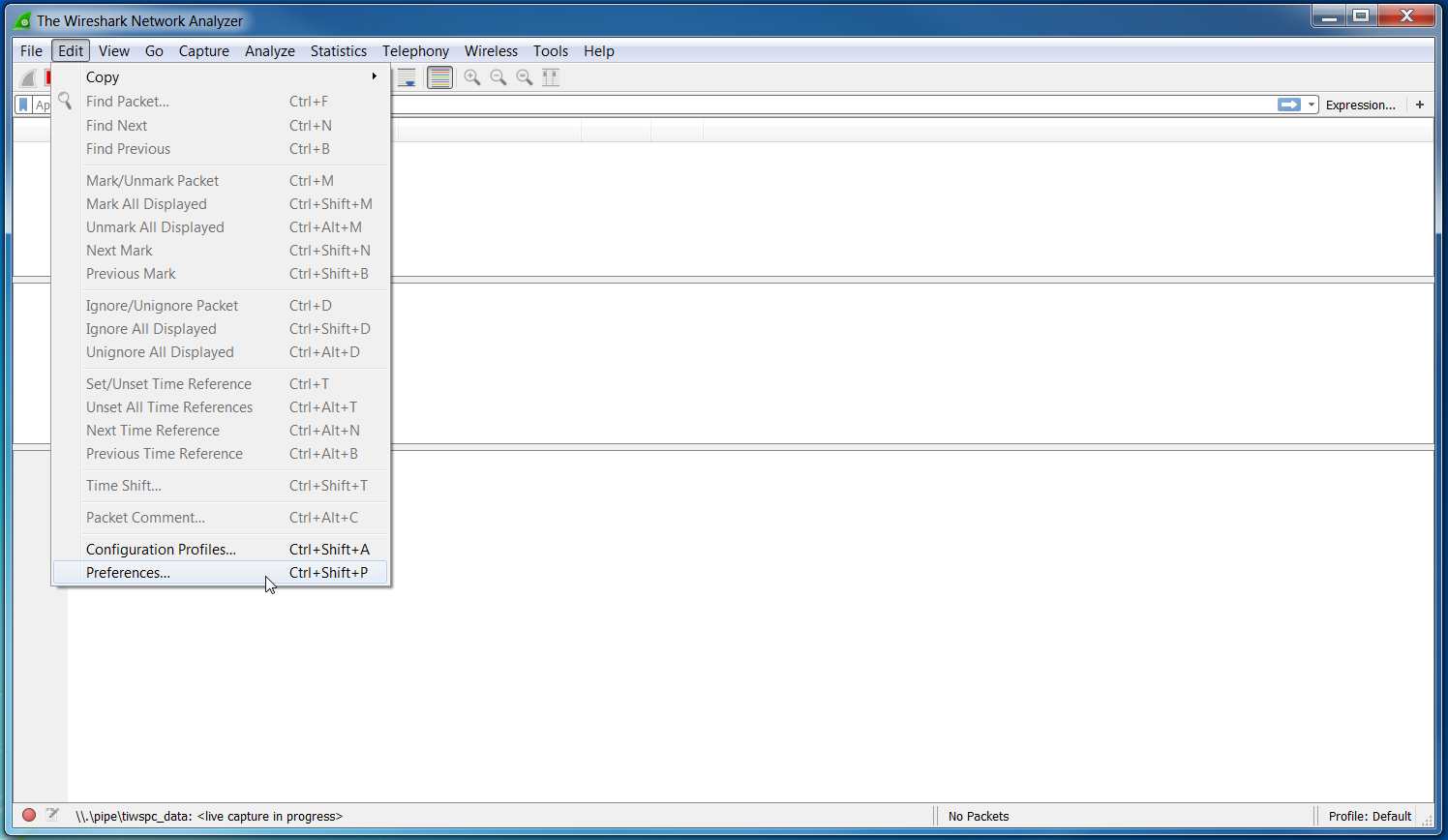

Figure 31. Edit Wireshark Preferences

Select the Thread Protocol dissector configuration by selecting on the right Protocol → Thread. Then set the Decode CoAP for Thread option as seen in Figure 32.

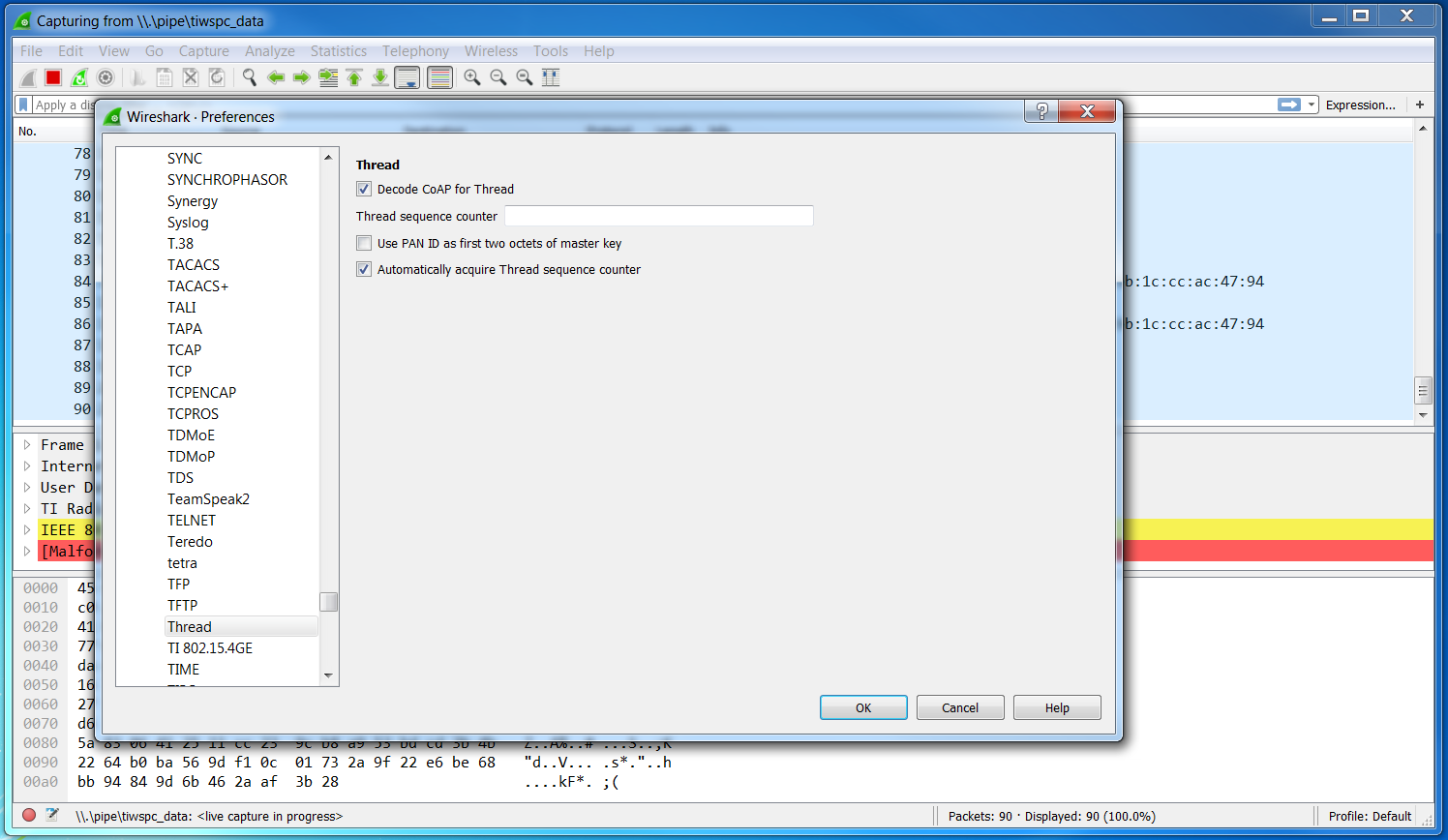

Figure 32. Edit Wireshark Thread Preferences

Select the CoAP Protocol dissector configuration by selecting on the right Protocol → CoAP and make sure that the port matches that seen in Figure 33.

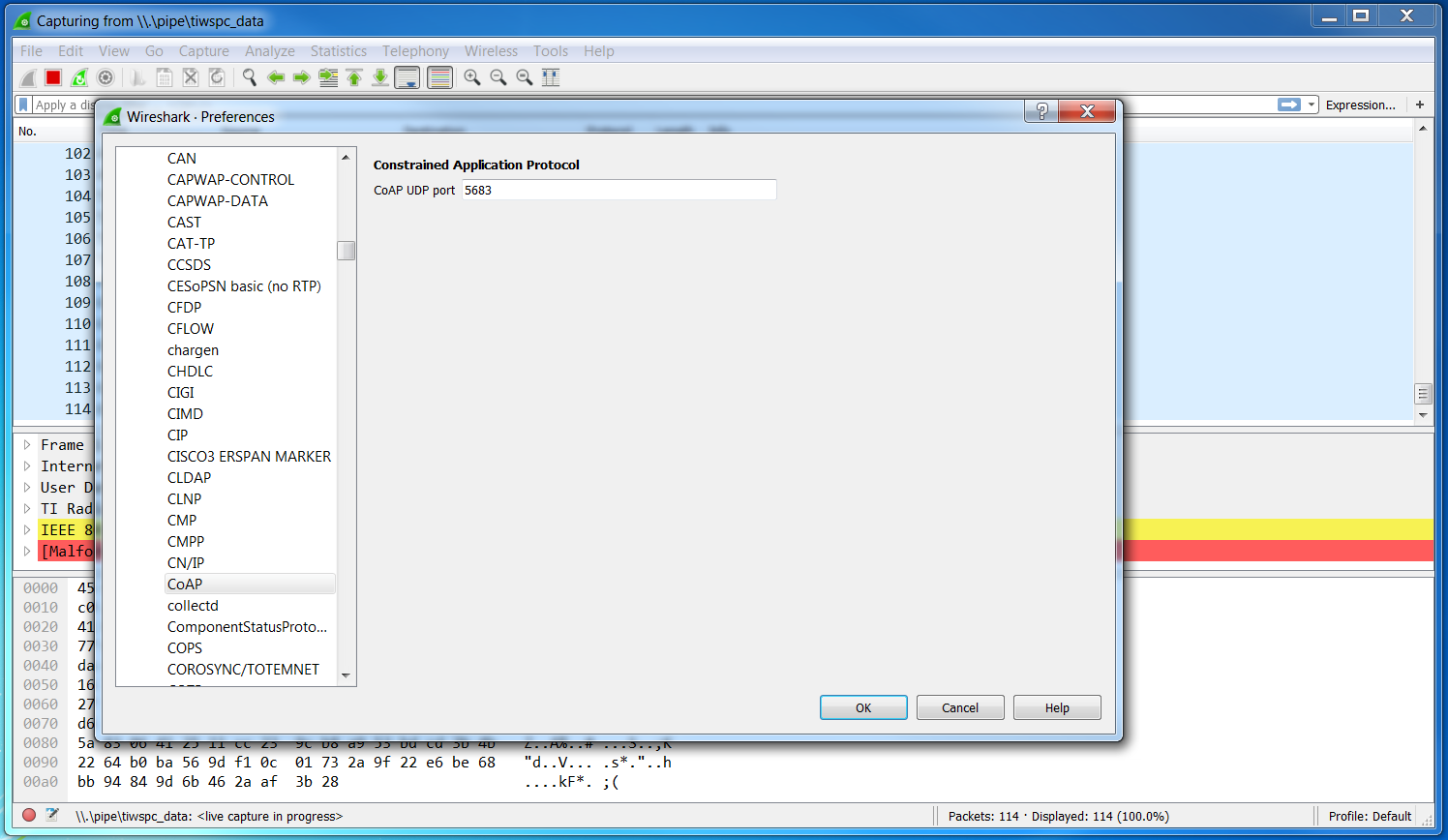

Figure 33. Edit Wireshark CoAP Preferences

Select the IEEE 802.15.4 Protocol dissector configuration by selecting on the right Protocol → IEEE 802.15.4 and make sure that the configuration matches that seen in Figure 34.

Figure 34. Edit Wireshark IEEE 802.15.4 Preferences

In the IEEE 802.15.4 Protocol dissector configuration, add a Thread Master key by selecting the Edit... button next to Decryption Keys and clicking the + button as seen in Figure 35.

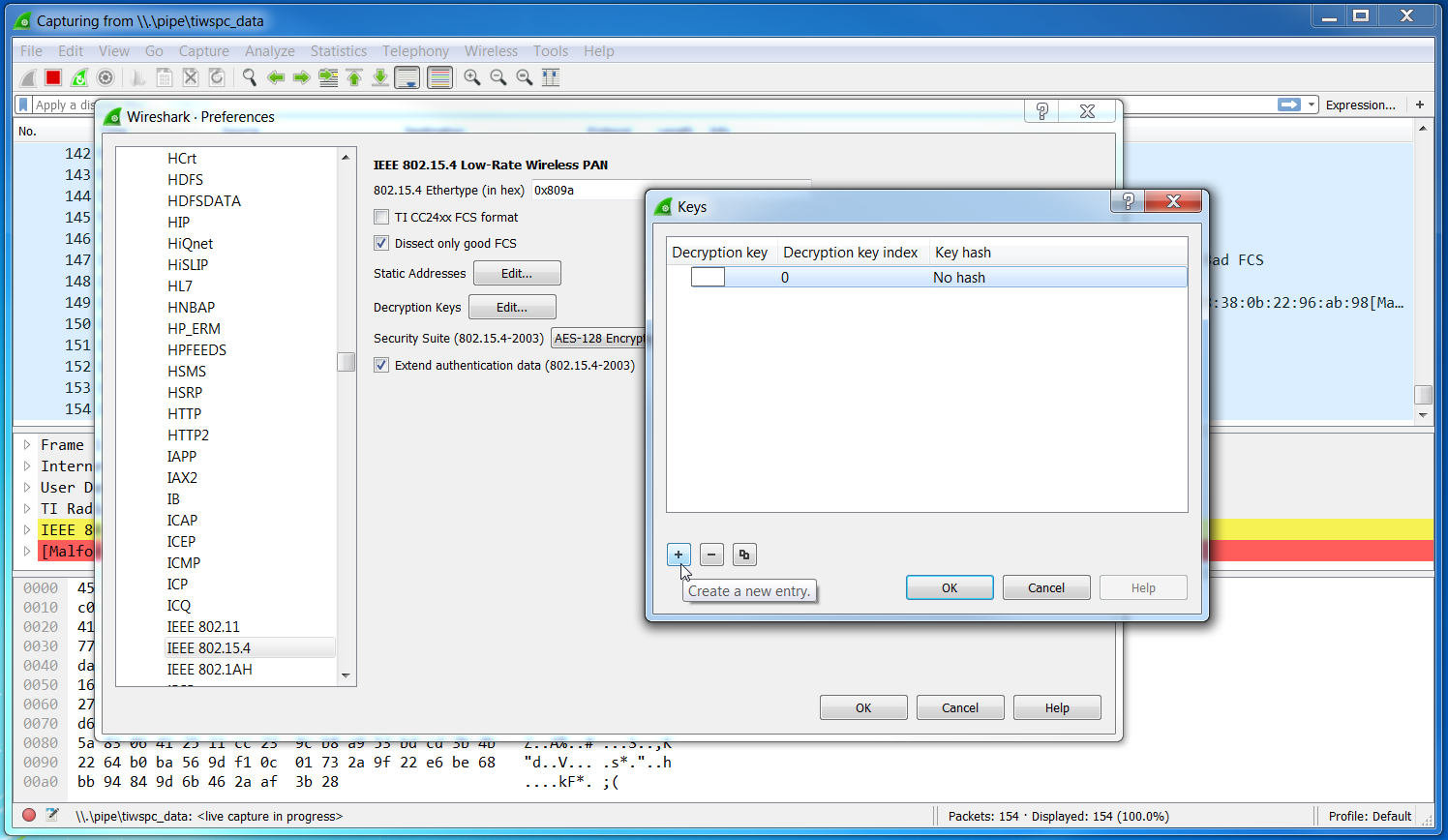

Figure 35. Add IEEE 802.15.4 Decryption Key

Set a key entry with:

Decryption Key 00112233445566778899aabbccddeeff

Decryption Key Index 1

Key hash Thread hash

As seen in Figure 36.

Note

The Decryption Key is the default value for OpenThread. This should be set to a random value in production. You may have to determine the actual Thread Master Key for a given network. The Thread Test Harness does change these keys in the course of its tests.

Figure 36. Add IEEE 802.15.4 Decryption Key

The packets in Wireshark should now be decrypted and dissected correctly as in Figure 37.

Figure 37. Thread Traffic
