Note

The steps on this page need to be done once on a given host machine

Build Program

• Following are the options to build and load an example program
  • Build and Load together in a single click
    • Righ click on the project and select 'Debug Project (F5)' option

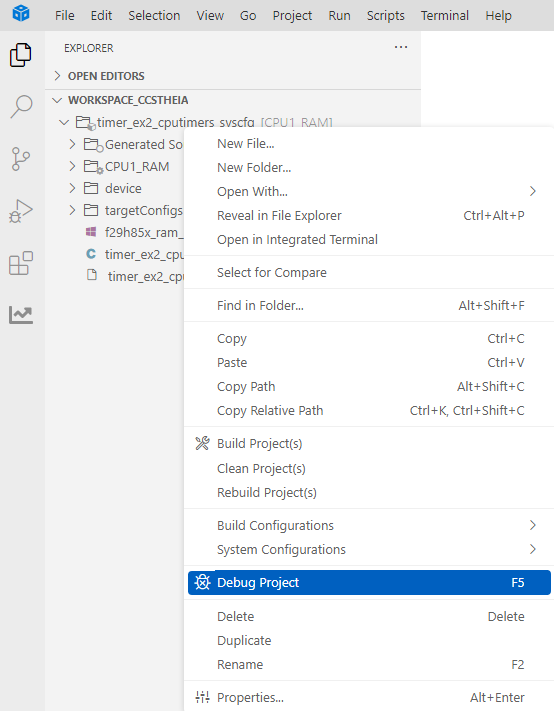

      Debug CCS project
    • It performs the following sequence
      • Builds the project
      • Executes the 'Post build sequence for FLASH configuration'
      • Launches the Target Configuration based on the 'TMS320F29H850TU9.ccxml' included in projectspec
      • Prompts user to select the core to load the program


        Select core to load program
      • Connects to the target core selected in above step
      • Loads the program onto the selected core
  • Build and Load separately
    • Build
      • Right click on the project and select either 'Build Project(s)' or 'Rebuild Project(s)' option


        Build CCS project
      • Upon successful build, example program is generated 'C:\Users\user_id\workspace_ccstheia\timer_ex2_cputimers_syscfg\RAM\' folder
      • Executes the 'Post build sequence for FLASH configuration'
